Biomass Recycling Line
Biomass Recycling Line is primarily used to process straw materials such as rice straw, wheat straw, and corn straw. It breaks down loose, bulky straw into small, uniform fragments, facilitating transportation, storage, and subsequent processing feed. The system also removes impurities mixed in the straw, such as sediment, stones, metals, and plastics, to improve raw material purity.
Capacity :2-30t/h
PLC Automation Control
Customized Solutions

Biomass Recycling Line

WhatsApp1
WhatsApp2

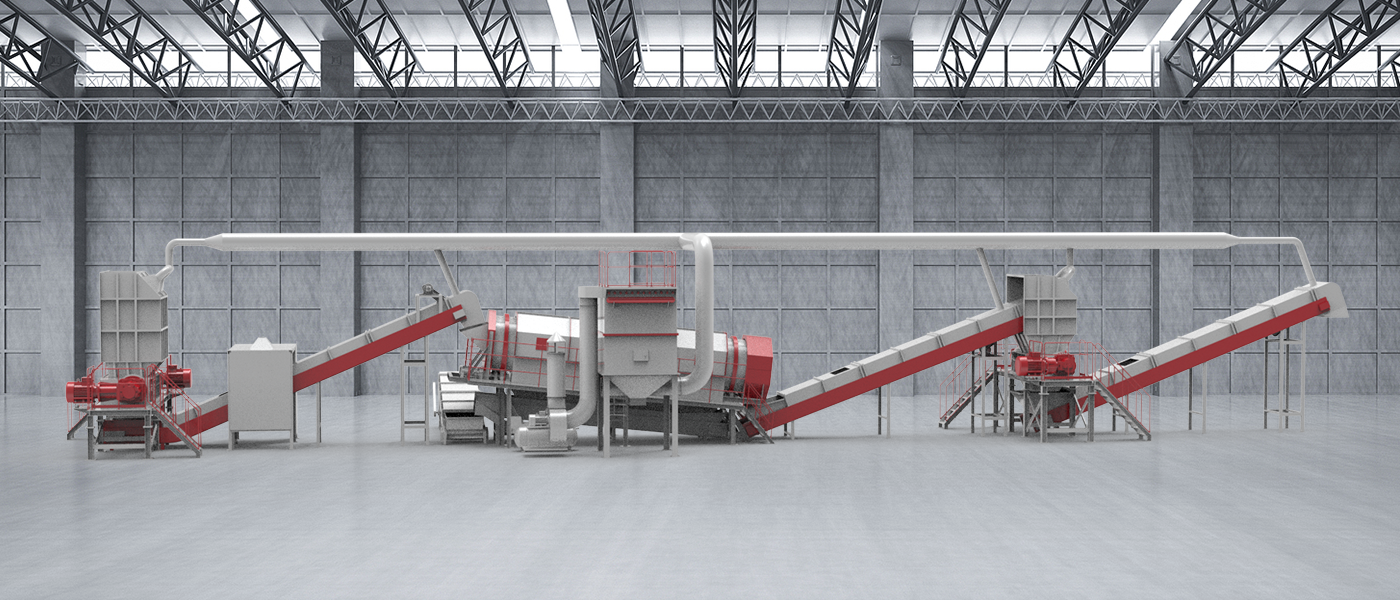

System Diagram

①:Chain Plate Conveyor   ②:Primary Shredder   ③:Magnetic Separator   ④:Belt Conveyor   ⑤:Belt Conveyor      ⑥:Trommel Screen
⑦:Dust Remover   ⑧:Belt Conveyor   ⑨:Secondary Shredder   ⑩:Belt Conveyor

Major Equipment

Separates and removes ferrous (iron-based) metals from the material stream.
Transports material between processing stages, ensuring seamless system integration.
Provides a fully sealed and
dust-tight system for comprehensive dust control.

Chain Plate Conveyor

  • Conveys raw materials to the crusher.

Primary Shredder

  • Processes entire straw bales for size reduction.

Secondary Shredder

  • Delivers finely crushed material with a particle size of ≤50mm.

Magnetic Separator

Belt Conveyor

Trommel Screen

  • Removes impurities such as soil, sand, and stones from the material.

Dust Remover

Main Output

  • Humus
  • Crushed Straw Feedstock
    尺寸≤50mm

System Features

Low Noise & Dust-Free

Noise Level ≤75 dB | Fully Sealed System with Dust Removal,
No Secondary Dust Pollution

Wide Processing Range

Rice Straw | Wheat Straw | Corn Stalk | Cotton Stalk | Legume Straw

Resource Utilization

Biomass Power Generation | Solid Biofuel Production |
Manufactured Board | Animal Feed Production

PLC Automation Control

Visual Operation | Current Monitoring | Overload Protection |
Fault Detection | Historical Data Query

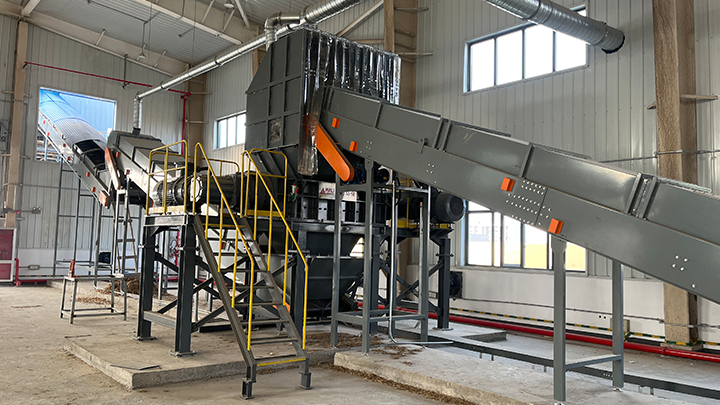

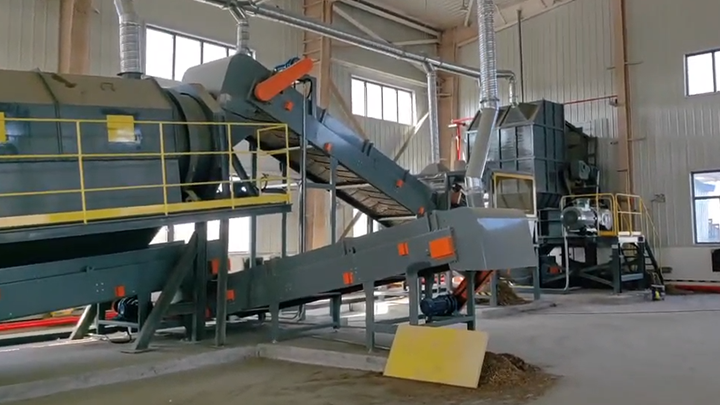

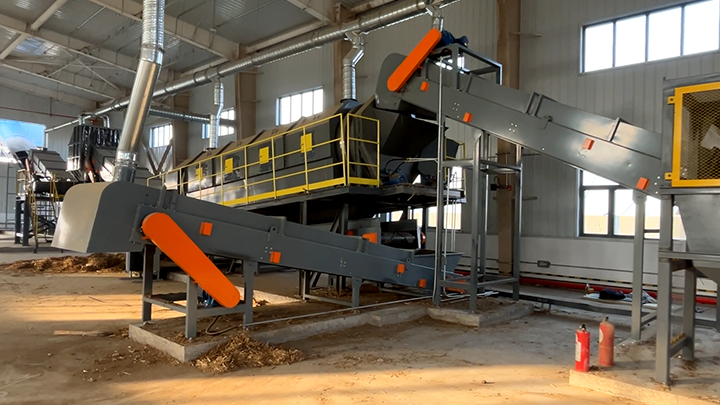

Project Site
