Oil Drum Shredder

    Oil Drum Shredder

    The oil drum dual-shaft shredder is a specialized equipment designed for processing metal containers such as oil drums. It is widely used in waste recycling, metal processing, and environmental protection industries.

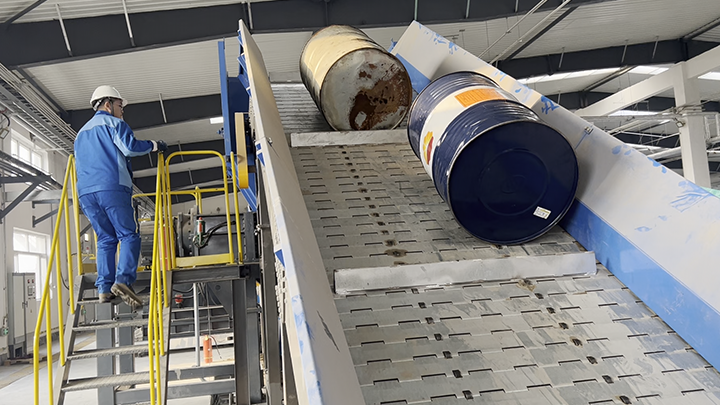

    Feeding: Oil drums are fed into the hopper via a conveyor belt or manually.

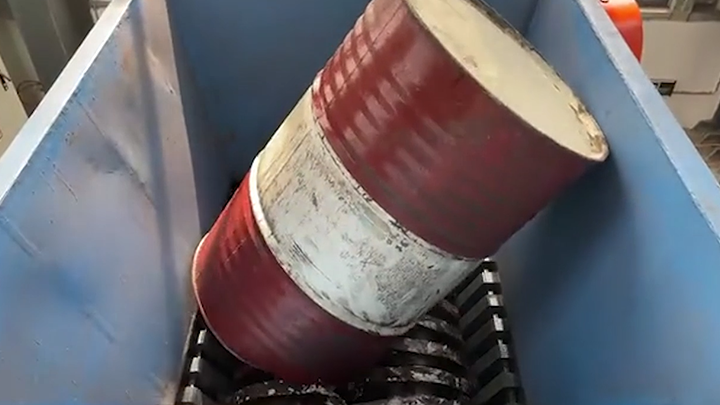

    Shredding: The dual-shaft blades rotate to shred the oil drums into small pieces.

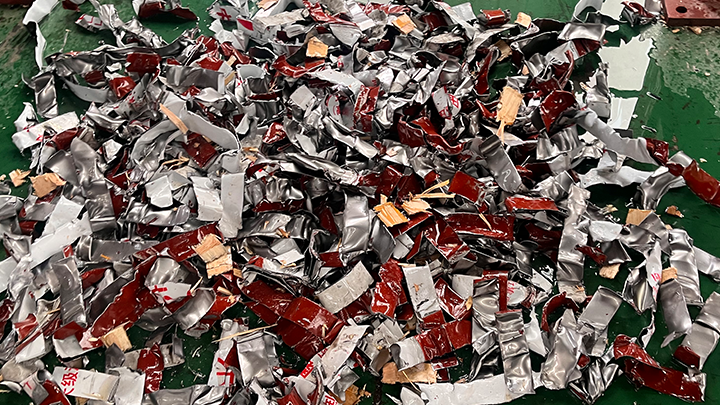

    Discharge: The shredded material is discharged from the outlet for further processing.

    Introduction

    Waste Recycling: Used for processing used oil drums, metal cans, etc.
    Metal Processing: Used for pre-processing metal materials.
    Environmental Protection Industry: Used for the harmless treatment of hazardous waste.

    Application

    Dual-Shaft Design: Equipped with two shafts fitted with blades that rotate in opposite directions to shred materials.
    High Efficiency: Capable of quickly processing oil drums and other metal containers, improving work efficiency.
    High Durability: Blades and body are made of high-strength materials, offering wear resistance, corrosion resistance, and a long service life.
    Safety and Reliability: Equipped with overload protection and emergency stop functions to ensure operational safety.
    Eco-Friendly and Energy-Efficient: Low noise and energy consumption, meeting environmental standards.

    Features

    Which model suits your needs?

    Specification
    		WEDS-1200
    		WEDS-1600
    		WEDS-1800
    		WEDS-2000
    Crushing chamber
    		1200*800 mm1600*1100 mm
    		1800*1000 mm
    		2100*1300 mm
    Rotor diameter
    		φ400 mmφ550 mm
    		φ500 mmφ650 mm
    Motor power
    		55+55 kW
    		90+90 kW
    		110+110 kW
    		200+200 kW
    Maximum output
    		4,000 kg/h6,000 kg/h8,000 kg/h12,000 kg/h
    Weight
    		8000 kg16000 kg22000 kg29000 kg
    Dimension (Length)
    		4100 mm5630 mm6110 mm6700 mm
    Dimension (Width)
    		2300 mm3160 mm4957 mm3700 mm
    Dimension (Height)
    		2800 mm3200 mm5520 mm3600 mm
