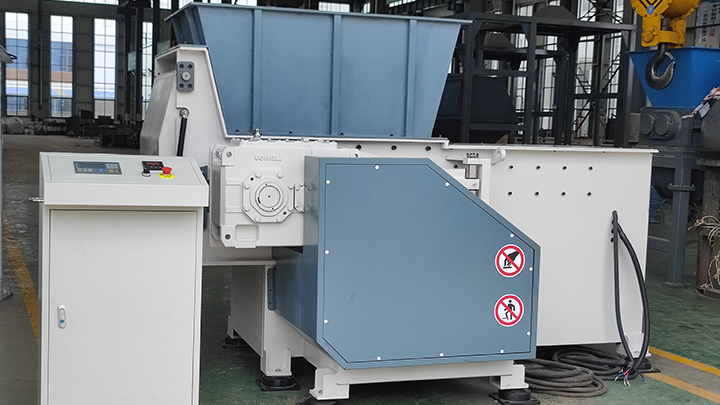

PCB Shredder

    PCB Shredder

    PCB shredder is a specialized device designed to process waste PCB boards. It uses a single rotating shaft with blades to shred the boards into small pieces, facilitating subsequent recycling and processing.

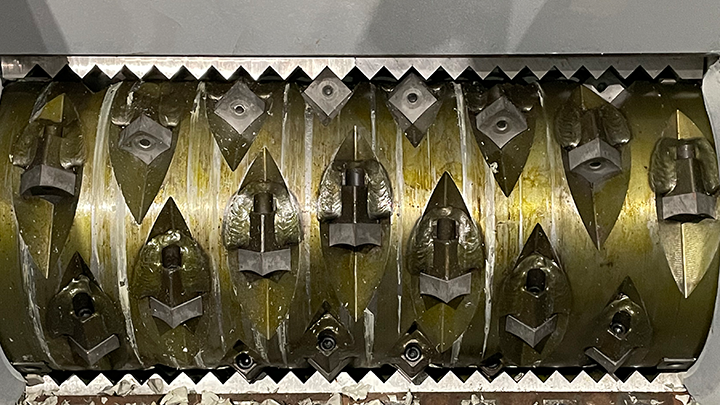

    Material enters through the feeding port, and the rotating blade shaft shreds it. The shredded material passes through the screen, while oversized pieces continue to be shredded.

    Introduction

    Primarily used for recycling waste PCB boards, suitable for electronics manufacturing, recycling companies, and environmental protection industries.

    Applications

    High Efficiency: Single shaft design ensures high shredding efficiency.

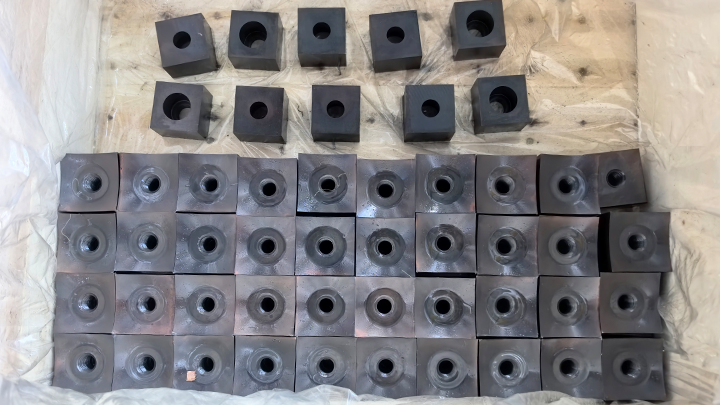

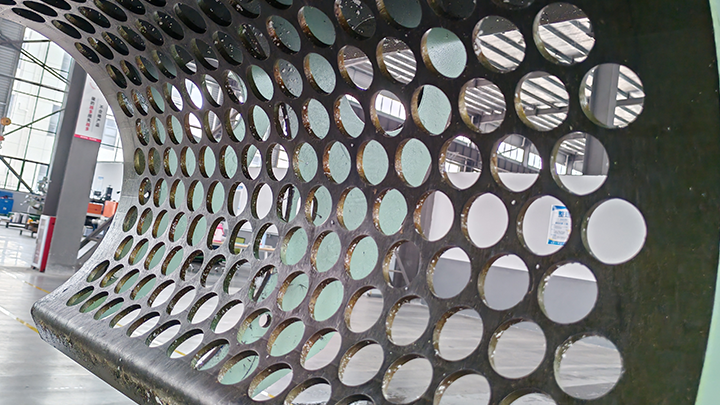

    Durability: Blades and screens are made of wear-resistant materials for long service life.
    Easy Operation: High automation level makes it easy to operate and maintain.
    Safety and Reliability: Equipped with safety protection devices for stable operation.

    Features

    Which model suits your needs?

    Specification
    		WES-600WES-800
    		WES-1000
    		WES-1200
    		WES-1400
    		WESH-1500
    Crushing chamber
    		500*580 mm
    		800*850 mm
    		1000*850 mm
    		1200*850 mm
    		1400*850mm
    		1700* 1500 mm
    Rotor diameter
    		250 mm
    		400 mm
    		400 mm
    		400 mm
    		400 mm
    		460 mm
    Rotor knife qty
    		263852588288
    Counter knife qty
    		444666
    Motor power
    		18.5 kW/ 25 HP37 kW/ 50 HP45 kW/ 60 HP55 kW/ 75 HP75 kW/ 100 HP90 kW/ 120 HP
    Hydraulic drive capacity
    		1.5 kW/ 2 HP3.7 kW/ 5 HP
    		3.75 kW/ 5 HP
    		5.5 kW/ 7 HP
    		5.5 kW/ 7 HP
    		5.5 kW/ 7 HP
    Maximum output
    		500 kg/h1,500 kg/h2,000 kg/h3,000 kg/h4,500 kg/h6,000 kg/h
    Weight
    		1,750 kg4,150 kg
    		4,300 kg5,300 kg5,900 kg13,000 kg
    Dimension (Length)
    		1,760 mm2,850 mm2,850 mm2,850 mm2,850 mm2,550 mm
    Dimension (Width)
    		1,300 mm1,760 mm1,960 mm2,560 mm2,760 mm3,750 mm
    Dimension (Height)
    		1,850 mm2,210 mm2,220 mm2,330 mm2,330 mm2,750 mm
