Single Shaft Shredder

PVC_Single Shaft Shredder

PVC shredder is a specialized equipment designed to process waste PVC pipes, breaking them into small pieces or granules for subsequent recycling.PVC are fed into the shredder through the inlet. High-speed rotating blades cut and tear the pipes, and the shredded material is discharged from the outlet. The particle size can be adjusted using a screen.

    Video

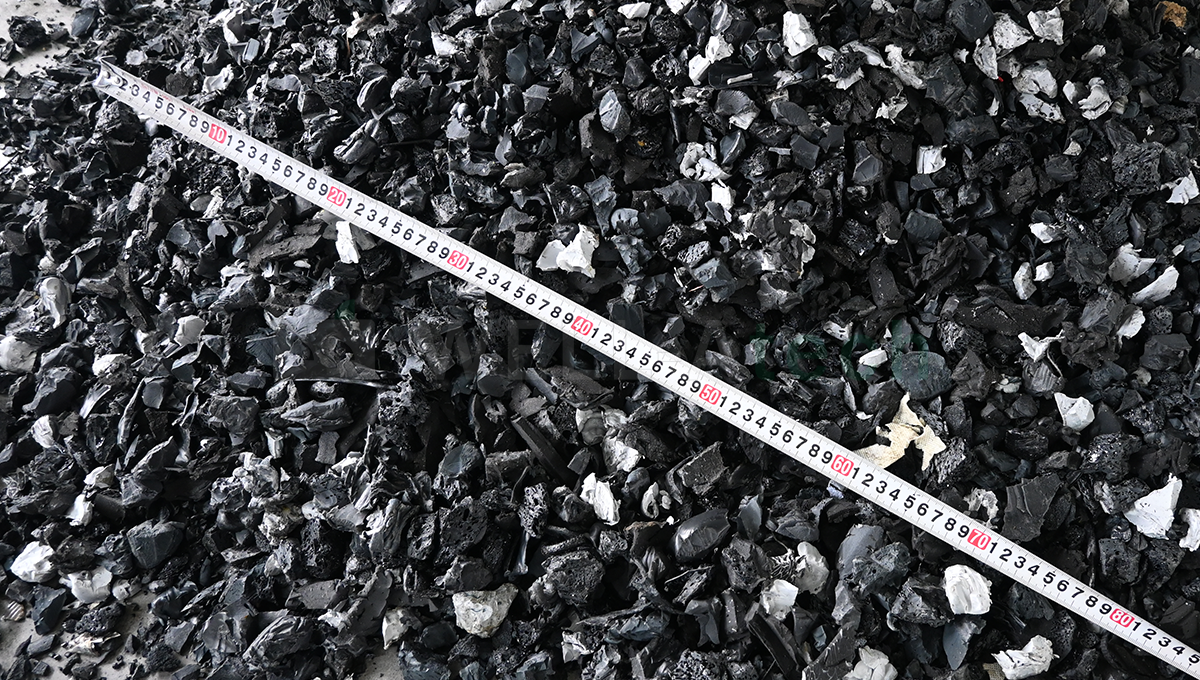

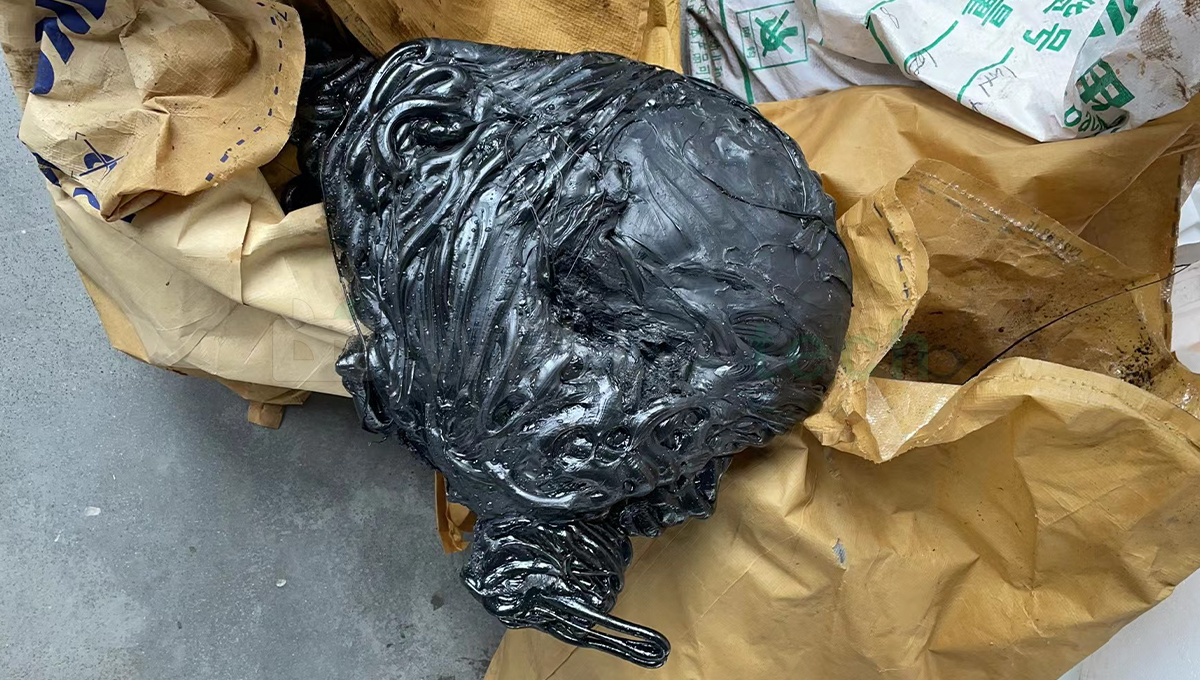

    Material

    Plastics:
    Injection molding sprue/gate waste,
    PVC/PE/ABS scraps.

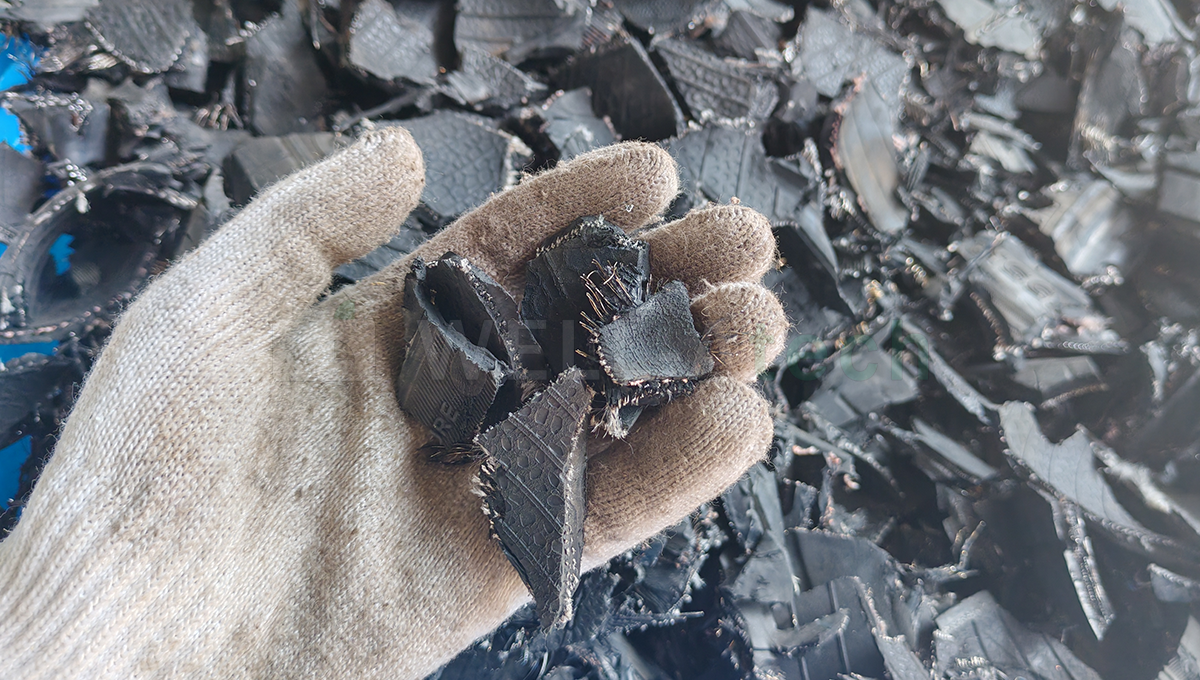

    Rubber:

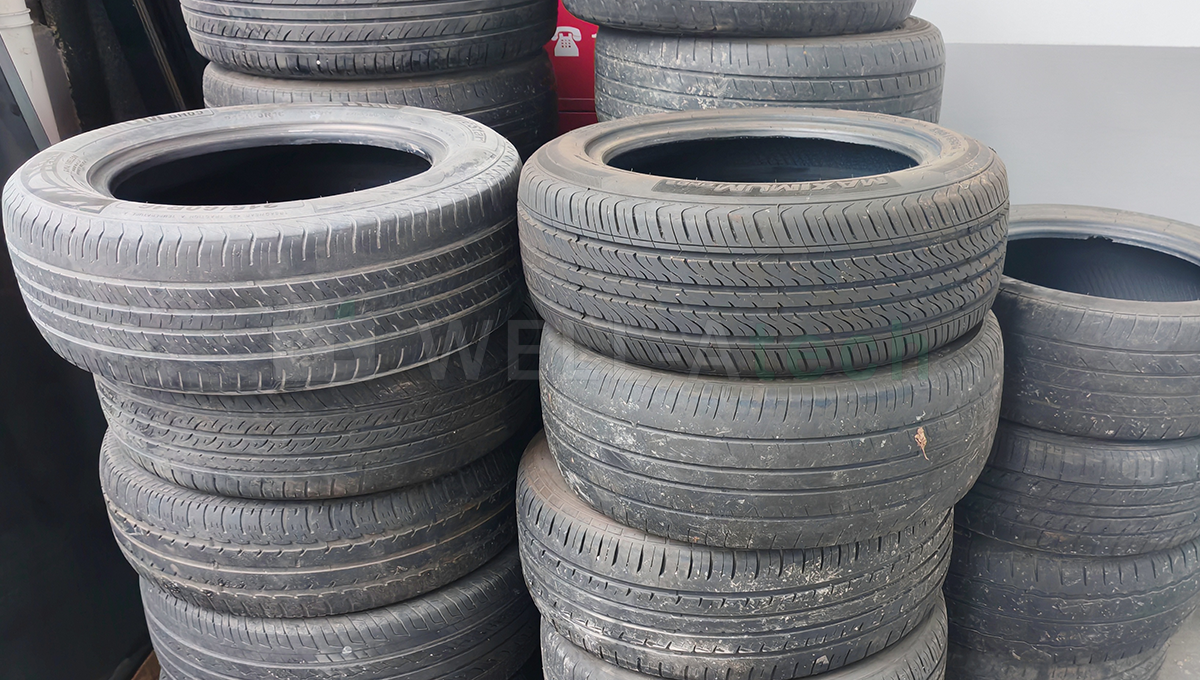

    Tire rubber blocks, seal ring waste,
    silicone sprue materials.

    Others:
    Soft composite materials,

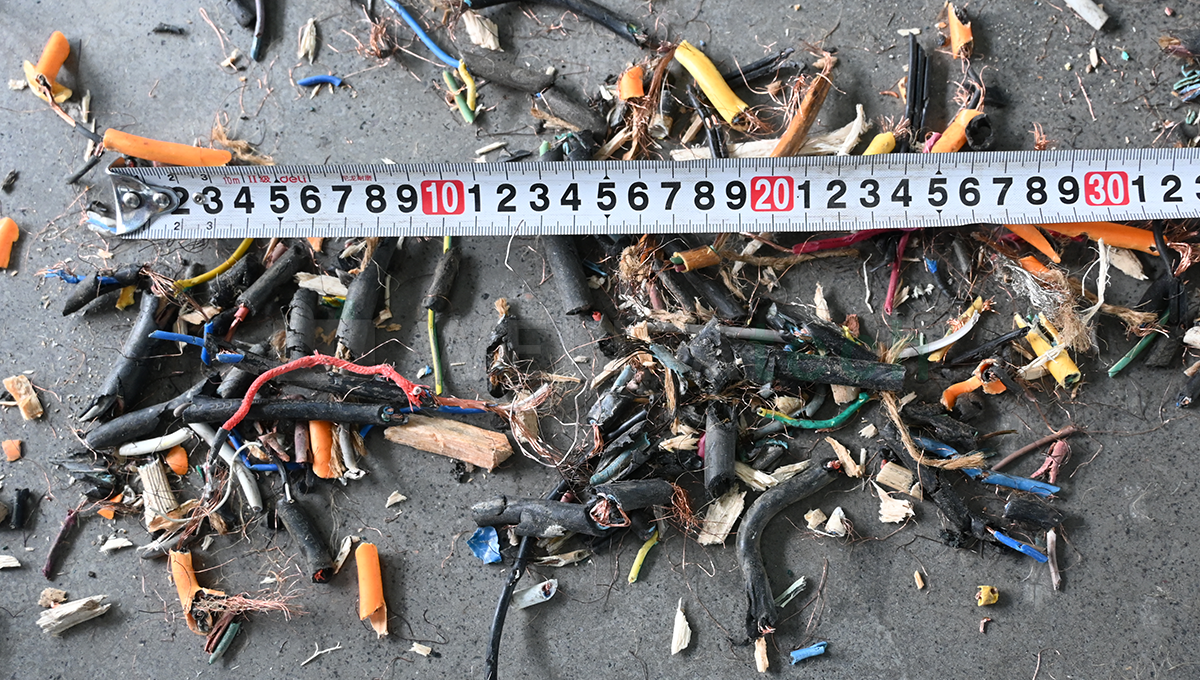

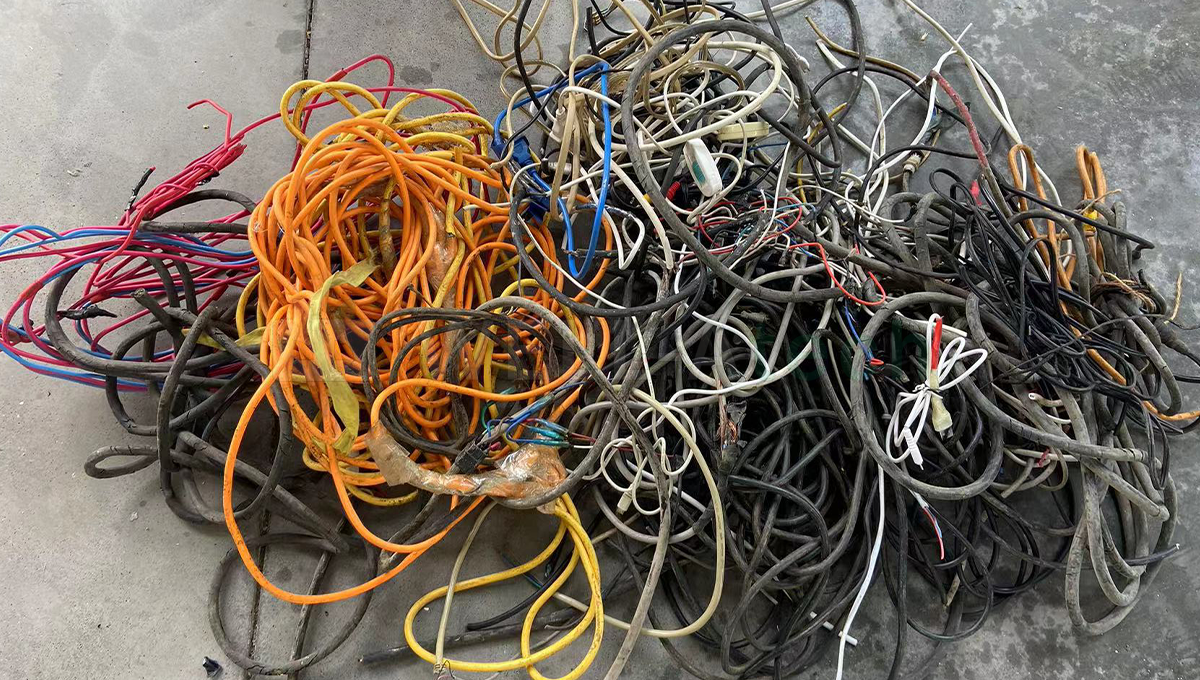

    cable sheathing, etc.

    Feature

    High-Efficiency Shredding

    Low-speed, high-torque design, ideal for tough and elastic materials.

    Wear-Resistant & Durable

    Critical components made of high-strength materials for extended
    service life.

    Adjustable Output

    Control particle size (20-40mm) by replacing the screen mesh.

    Safety Protection

    Overload protection, emergency braking, and anti-rebound design.

    Eco-Friendly Design

    Optional noise-reducing enclosure or dust removal port.

    Specification

    Specification
    		WES600
    		WES800
    		WES1000
    		WES1200
    		WES-1400
    Crushing chamber（mm）
    		600*500800*8001000*8501200*850
    		1400*850
    Motor power (kW)
    		18.537455575
    Hydraulic drive capacity (kW)
    		2.253.75
    		3.75
    		5.5
    5.5
    Rotor diameter (mm)
    		250
    		400
    		400
    		400
    		400
    L*W*H Dimension（mm）
    		1760*1300*1850
    		2850*1760*2210
    		2850*1960*22202850*2560*2330
    		2850*2760*2330
    Voltage and color customization available






    Full machine warranty for one year (excluding wear parts), with lifetime after-sales support!
