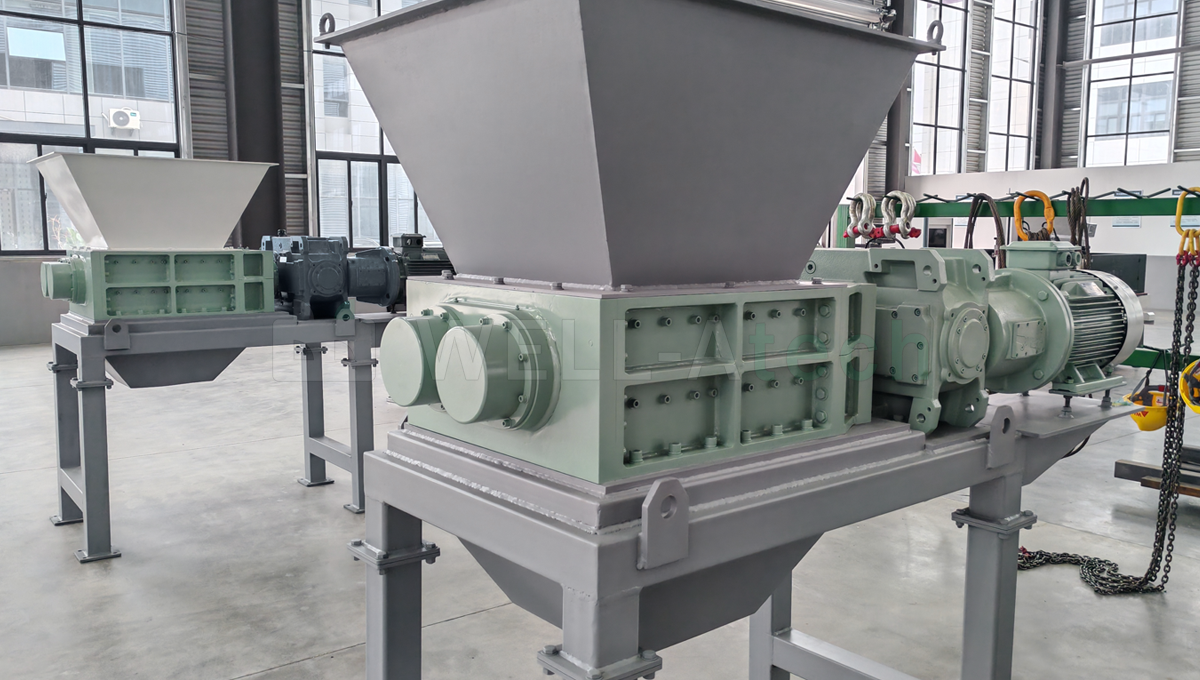

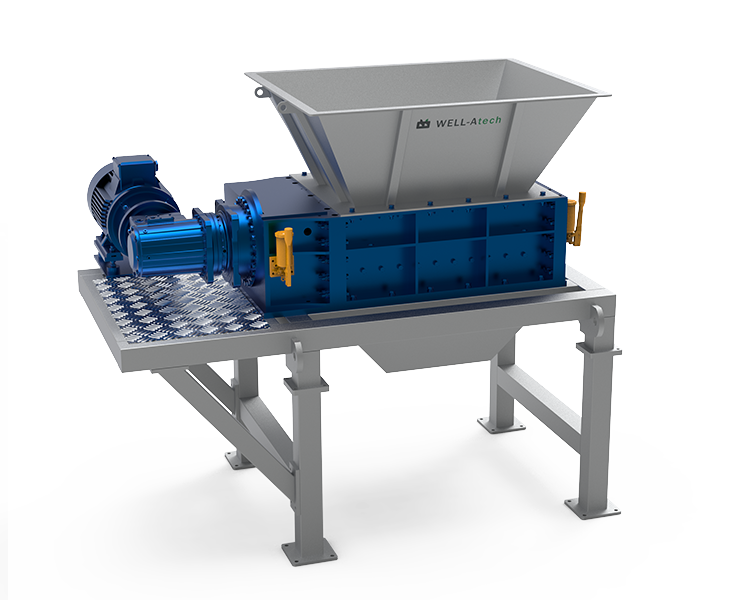

WED series double shaft shredder driven by single motor and gearbox. Drive two shafts at the same time by gears to achieve the shredding of material. This series is light load shearing type shredder, which has compact structure and small footprint. But it has strong core strength, adopts high alloy steel blades ,42CrMo shaft, and detachable counter blade design.
Capacity：200-5000kg/h
Output Size：20-80mm
Customizable
Double Shaft Shredder_WED Series
WhatsApp1
WhatsApp2

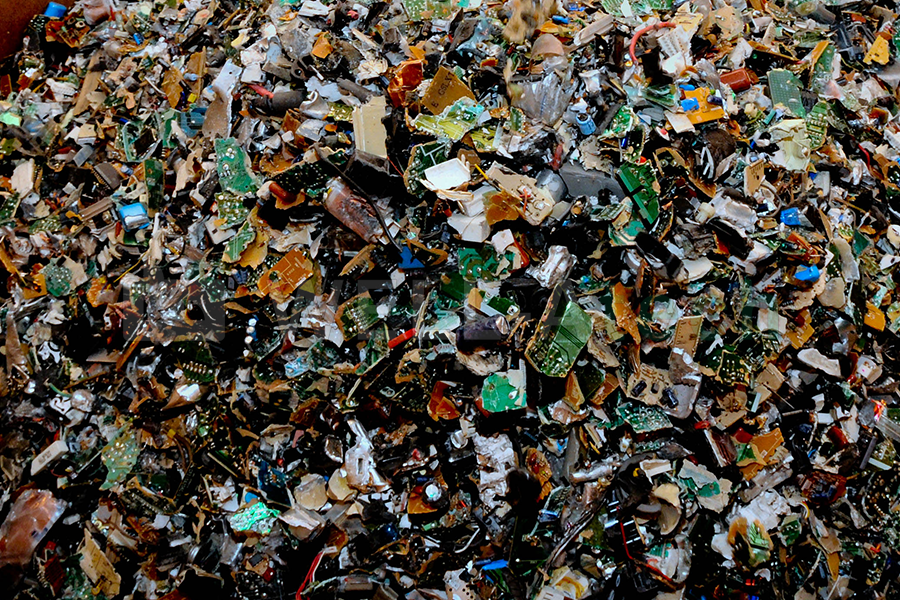

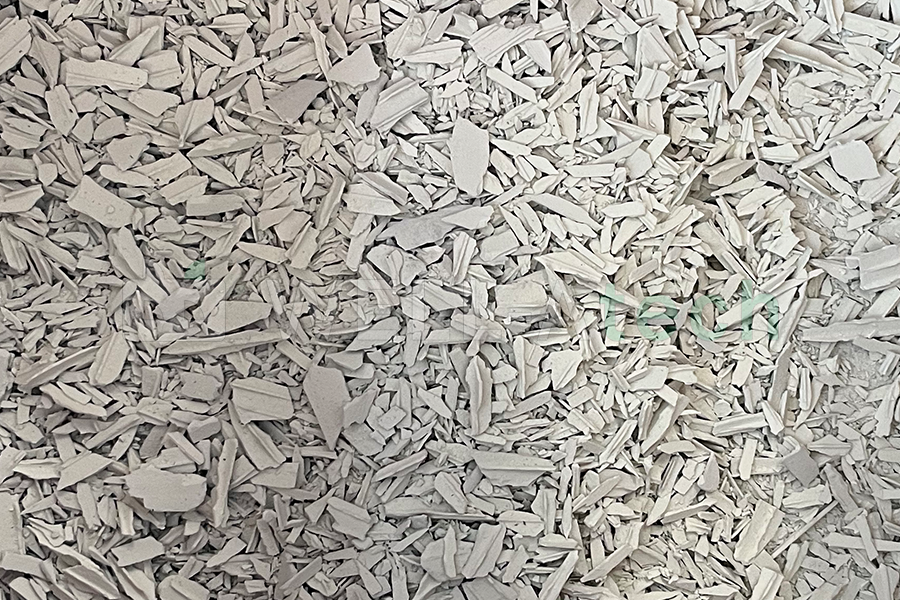

Output Display
Output Display
WED series-Overview
Materials ：
Kitchen Waste: Fruit and vegetable scraps, food waste, wet market
E-waste: Hard disks, PCB boards, keyboards, mice, mobile phones, CD discs
Metallic : Iron scraps, beverage cans, paint cans, thin-gauge metal stock
Medical : Syringe-based waste, pharmaceutical waste, discarded masks
Plastic : Beverage bottles, plastic jugs, plastic buckets, plastic crates

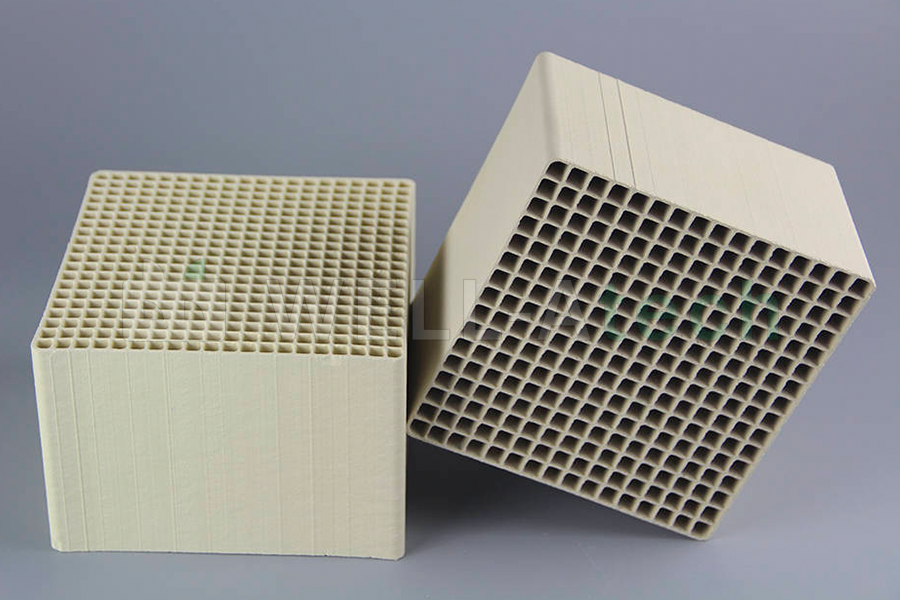

Chemical: Spent SCR catalysts, polyamide waste
E-waste: Hard disks, PCB boards, keyboards, mice, mobile phones,
Metallic : Iron scraps, beverage cans, paint cans, thin-gauge metal stock
Medical : Syringe-based waste, pharmaceutical waste, discarded masks
Plastic : Beverage bottles, plastic jugs, plastic buckets, plastic crates
Chemical: Spent SCR catalysts, polyamide waste

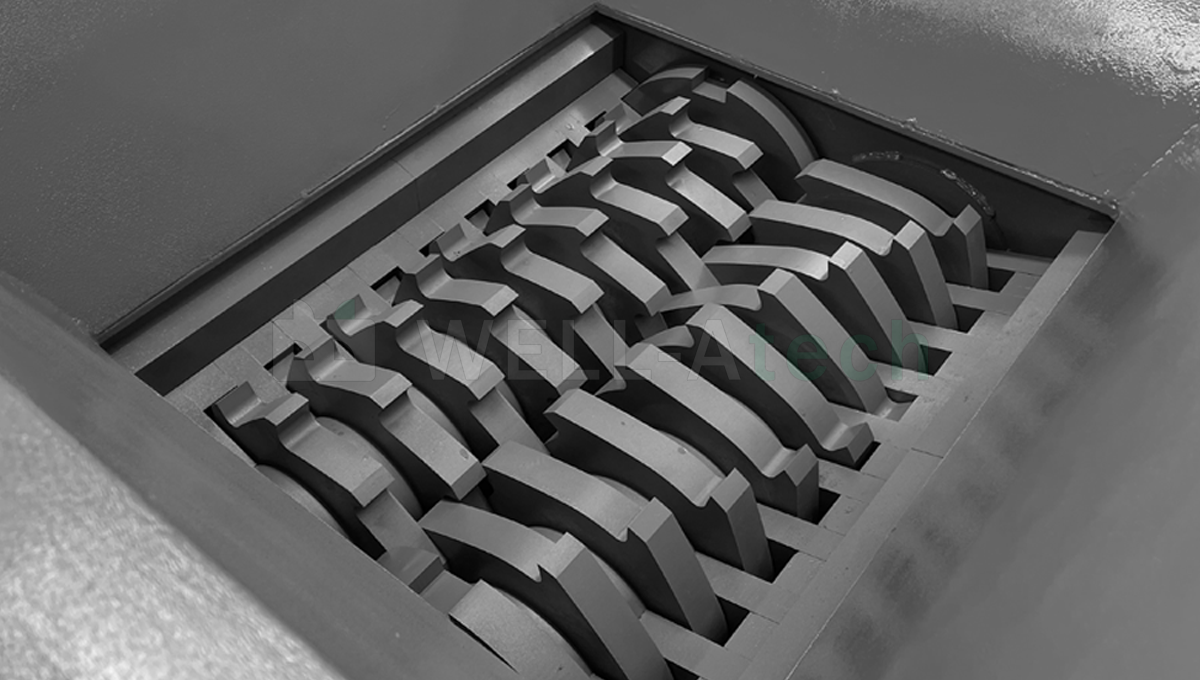

The two cutter shafts, driven by the power system, rotate in opposite directions at a low speed and high torque. After material enters the crushing chamber through the hopper, it is gripped by the rotating cutters. Through the combined actions of inter-cutter shearing, material-tearing, and mutual material compaction, the material is broken down into smaller fragments and discharged through the outlet.
Working Principle
WED series-Feature
Counter Blade
Counter blades on both sides of shredding chamber can prevent material from winding.Individually removable design for easy maintenance.

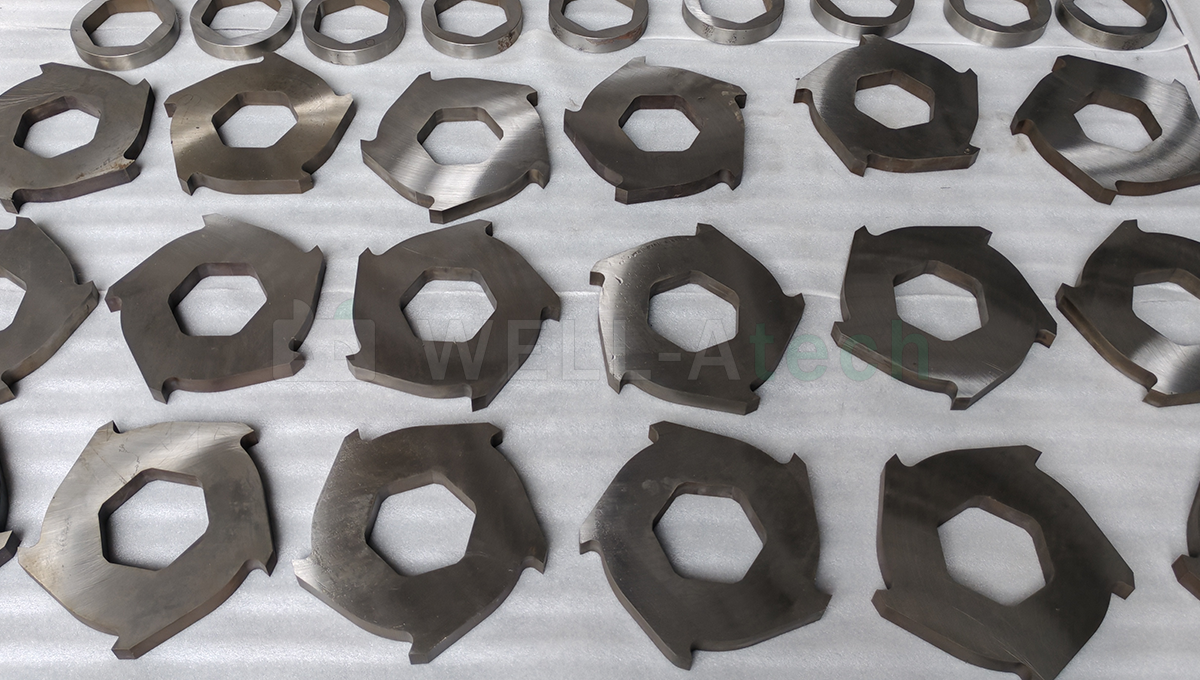

Rotor Blade
DILLIGUR / HARDOX Imported raw material NiCrMo High alloy steel.
Adjustable blade thickness & Teeth number.
Adjustable blade thickness & Teeth number.

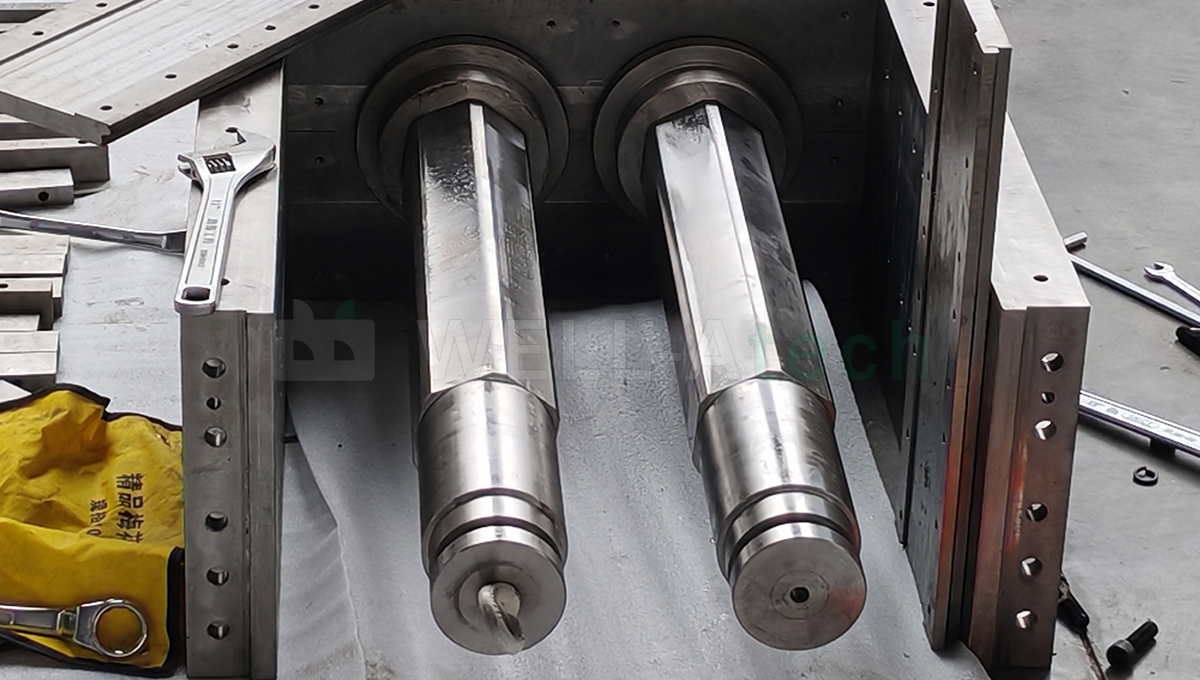

Main Shaft
Adopts 42CrMo high alloy steel, ensure its good mechanical strength and shock resistance.
Hexagonal axial surface design has high positioning accuracy and uniform force while connection.
Hexagonal axial surface design has high positioning accuracy and

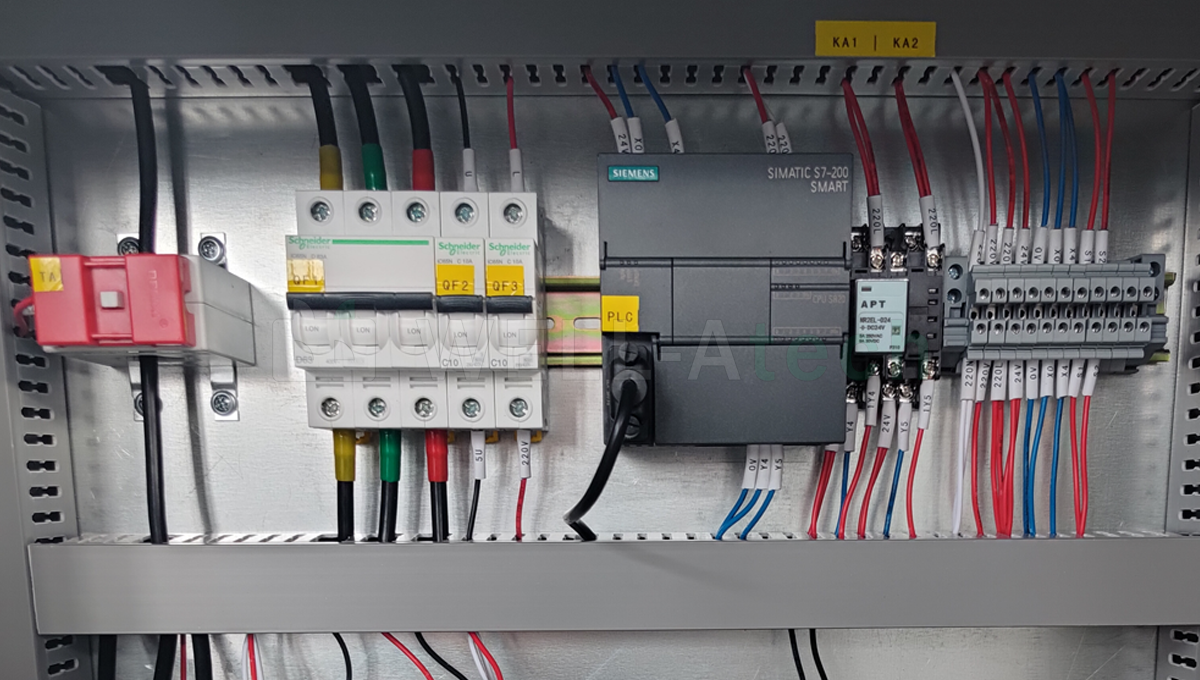

Electric System
Main electrical control components adopt Siemens, Schneider and other reliable international brands.
Drive System
Brand-name motor and reducer | Low speed, high torque | Smooth operation | Low noise
PLC Control System
Automated PLC Control | Current Monitoring | Overload Protection | Emergency Stop
Full machine warranty for one year (excluding wear parts), with lifetime after-sales support!
WED series-Parameters
| Specification | Model | WED450 | WED600 | WED800 | WED1000 |
| Crushing chamber（mm） | 450*350 | 600*550 | 800*600 | 1000*700 |
| Motor power (kW) | 5.5 | 15 | 22 | 30 |
| Rotor diameter (mm) | φ234 | φ280 | φ305 | φ330 |
| Weight (kg) | 600 | 1200 | 1800 | 2000 |
| L*W*H Dimension（mm） | 1320*800*1800 | 2240*1050*2020 | 2500*1120*2230 | 2510*1865*2550 |
| Voltage and color customization available | ||||
