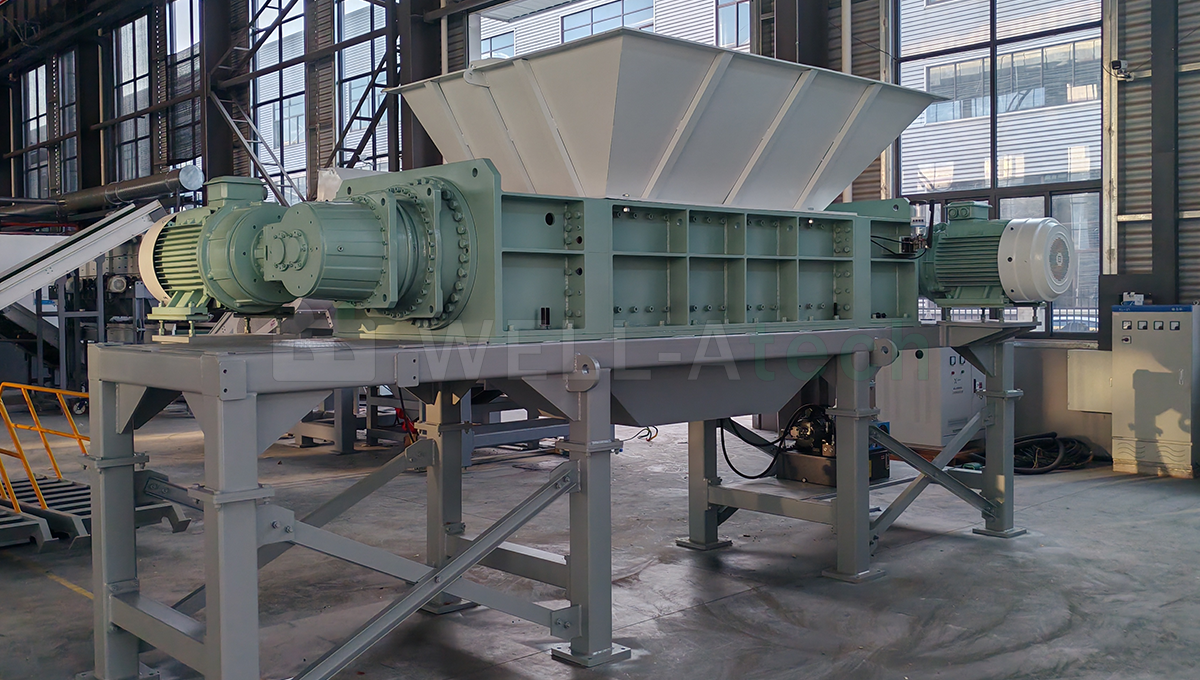

WEDS series double shaft shredder driven by double motor and double planetary gearbox. Based on the principle of shearing, the material is shredded by relative rotation of two sets blades.Since the strong power and high stability of this shredder, it is often used for MSW treatment, resource regeneration, pretreatment of refuse burning and other environmental protection field.
Capacity ：1t-25t/h
Output Size：30-150mm
Customizable

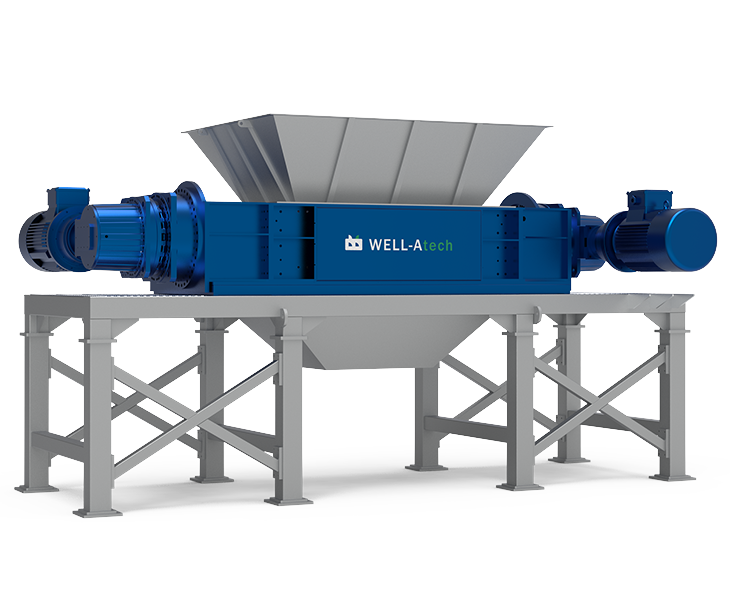

Double Shaft Shredder_WEDS Series
WhatsApp1
WhatsApp2
Output Display
WEDS Series-Overview
Materials：
Bulky Waste: Used sofas, mattresses, wooden cabinets, garden waste, plastic pallets, decommissioned wind turbine blades
Metal Waste: Used oil drums, scrapped vehicle shells, aluminum alloy die castings, used household appliance housings
Industrial Waste: General industrial waste, industrial residues, paper mill light rejects/wire ropes, SRF pre-shredded materials
Domestic Waste: Household waste, mixed waste, aged waste
Biomass Straw: Rice straw, bamboo, timber, corn stalks, sorghum stalks
Rubber Tires: Automotive tires, rubber products
Metal Waste: Used oil drums, scrapped vehicle shells, aluminum alloy
Industrial Waste: General industrial waste, industrial residues, paper
Domestic Waste: Household waste, mixed waste, aged waste
Biomass Straw: Rice straw, bamboo, timber, corn stalks, sorghum
Rubber Tires: Automotive tires, rubber products

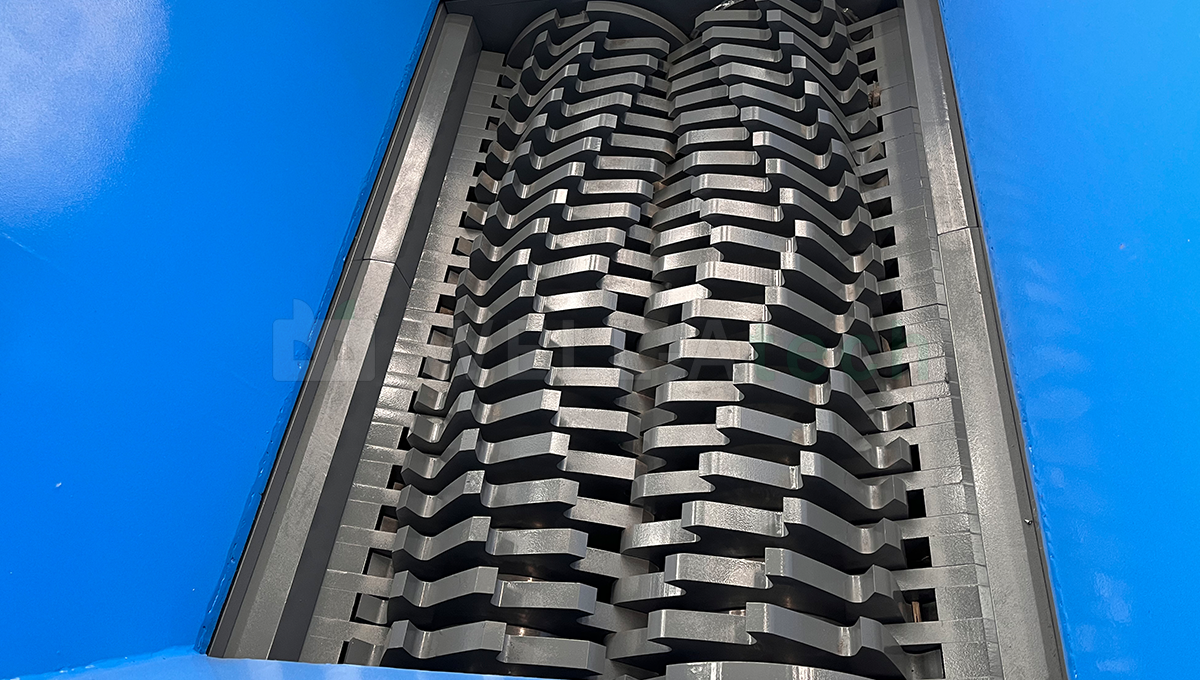

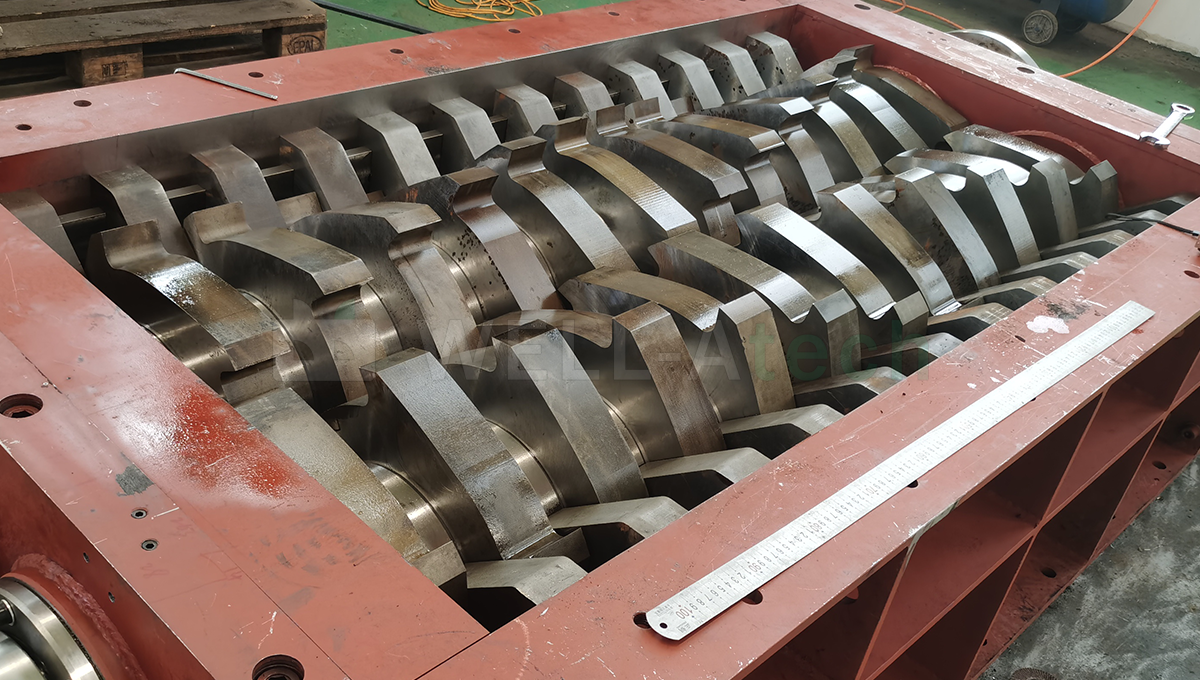

The two sets of independently rotating knife shafts, counter-rotating against each other, generate shearing forces and cooperate with the stationary knives to form a shearing gap, thereby achieving material shredding. Powered by dual-motor-driven planetary gear reducers, the engaging process of the knife teeth creates tearing and compression effects. The shredded material is then discharged through the discharge hopper.
Working Principle
WEDS Series-Features
Counter blade
Designed with independently detachable dual stationary knives to prevent material wrapping and facilitate easy maintenance.

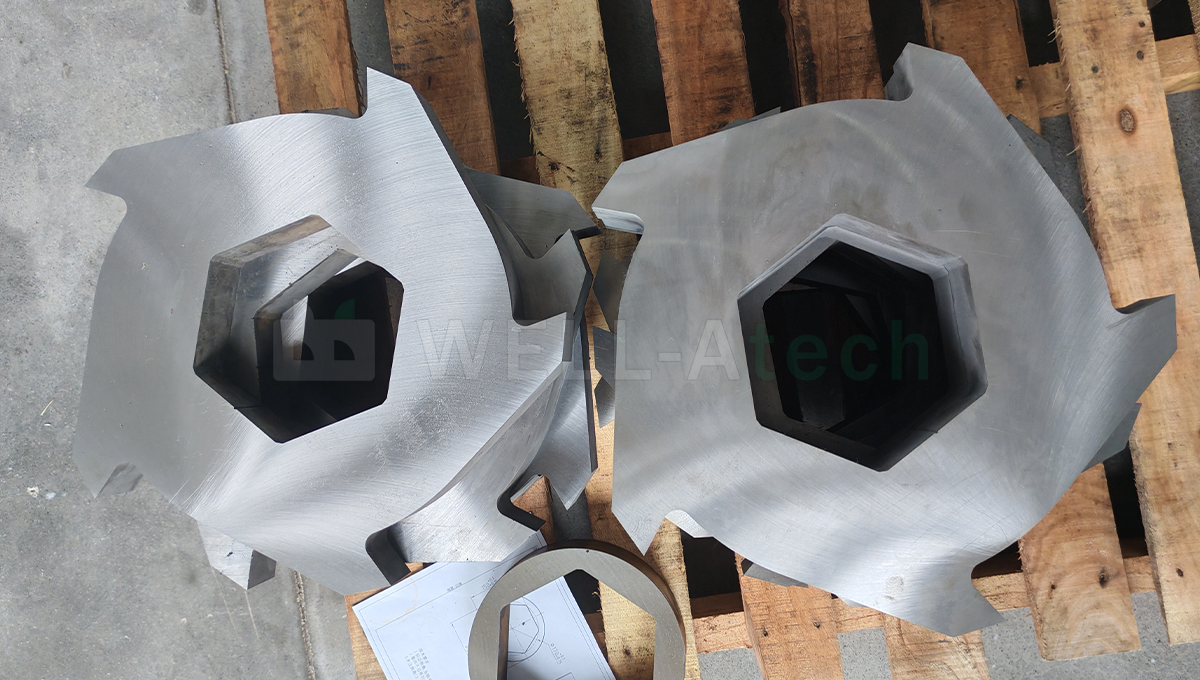

Rotor Blade
DILLIGUR / HARDOX Imported raw material NiCrMo High alloy steel.

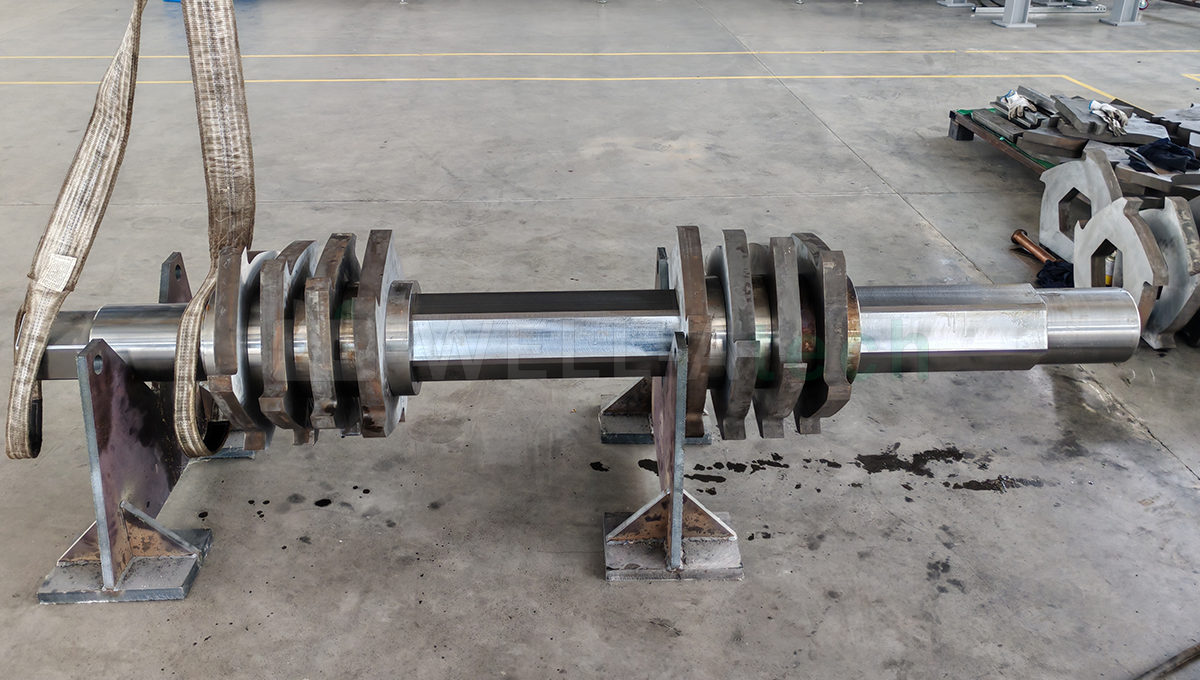

Main Shaft
Adopts 42CrMo high alloy steel, ensure its good mechanical strength and shock resistance.
Motor
Powered by a top-tier brand motor, ensuring low noise, high energy efficiency, and exceptional stability.
Planetary Gearbox
High transmission efficiency, stable operation, strong shock
resistance.
resistance.
Electrical Control
Equipped with PLC system to achieve automatic control. Easy operation.Monitor key parameters to ensure the safety.
Full machine warranty for one year (excluding wear parts), with lifetime after-sales support!
| Specification | Model | WEDS1000 | WEDS1200 | WEDS1600 | WEDS1800 | WEDS2000 |
| Crushing chamber（mm） | 1000*700 | 1200*800 | 1600*1100 | 1800*1000 | 2200*1300 |
| Motor power (kW) | 30+30 | 55+55 | 90+90 | 110+110 | 220+220 |
| Rotor diameter (mm) | φ330 | φ400 | φ550 | φ500 | φ650 |
| Weight (kg) | 4500 | 8000 | 16000 | 22000 | 29000 |
| L*W*H Dimension（mm） | 3150*2150*2500 | 4100*2300*2800 | 5630*3160*3200 | 6110*4957*5520 | 5700*3700*3600 |
| Voltage and color customization available | |||||
WEDS Series-Parameters
