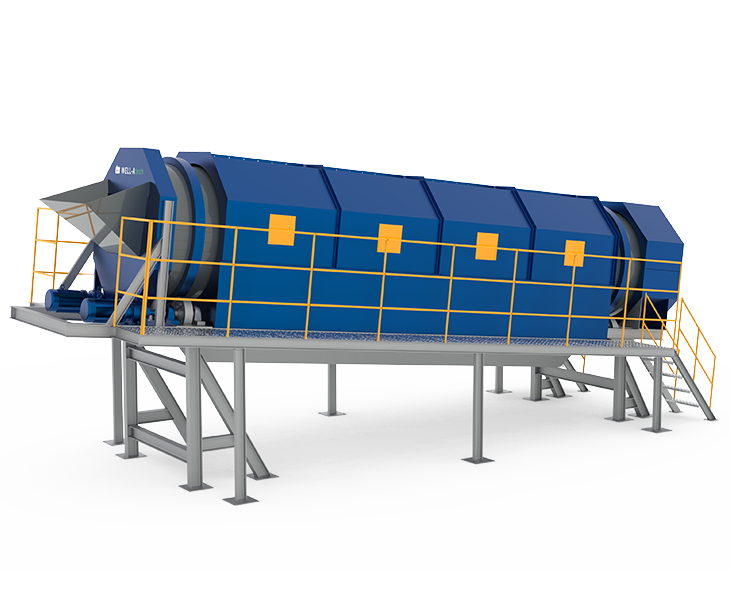

WEGT  Trommel Screen

Trommel Screen_WEGT Series

WEGT Series Trommel Screen is a common screening equipment primarily used for the screening, grading, and separation of granular materials. It utilizes the rotational motion of the drum to roll materials on the screen surface, thereby achieving the separation of different particle sizes.

    Video

    Materials:

    Suitable for household waste, construction
    waste, scrap metal, as well as industries
    such as mining, power plants, building
    materials, and metallurgy.

    Feature

    Less Prone to Clogging

    Utilizes the rolling conveying principle, with a low friction coefficient,
    minimal wear, and screen holes that are less likely to clog.

    High Stability

    The drum support adopts an integrated through-shaft structure, ensuring
    smooth operation, no vibration, and low noise.

    Easy Maintenance

    The internal drum screen components feature a modular design, with
    a simple structure for quick replacement and repairs.

    Environmentally Friendly

    The drum body adopts a fully sealed structure, effectively preventing
    dust and pollution.

    Energy Efficient

    Equipped with a reduction drive, it offers high transmission efficiency,
    low power consumption, and significant energy savings.

    Specification

    Specification
    		WEGT1000
    		WEGT1200
    		WEGT1500
    		WEGT1600
    		WEGT1800
    		WEGT2000
    		WEGT2500
    Motor power (kW)
    		45.511
    		15
    		18.5
    		3055
    Diameter(mm)
    		φ1000
    		φ1200φ1500
    		φ1600
    		φ1800
    		φ2000
    		φ2500
    Length(mm)
    		3000
    		4500
    		5000
    		60006500
    		7000
    		11000
    Speed (r/min)
    		22
    		16
    		16.6
    		10
    		13.6
    		11.6
    		16
    Capacity (t/h)
    		1-33-5
    		5-7
    		16-24
    		30-50
    		50-70
    		70-100
    L*W*H Dimension（mm）
    		3500×1400×2000
    		5700×1600×2400
    		6860×1900×2810
    		7300×2000×3000
    		9000×2200×3200
    		10234×2430×580013830×3000×3854
    Voltage and color customization available






    Full machine warranty for one year (excluding wear parts), with lifetime after-sales support!
