WECX  Magnetic Separator

Magnetic Separator_WECX Series

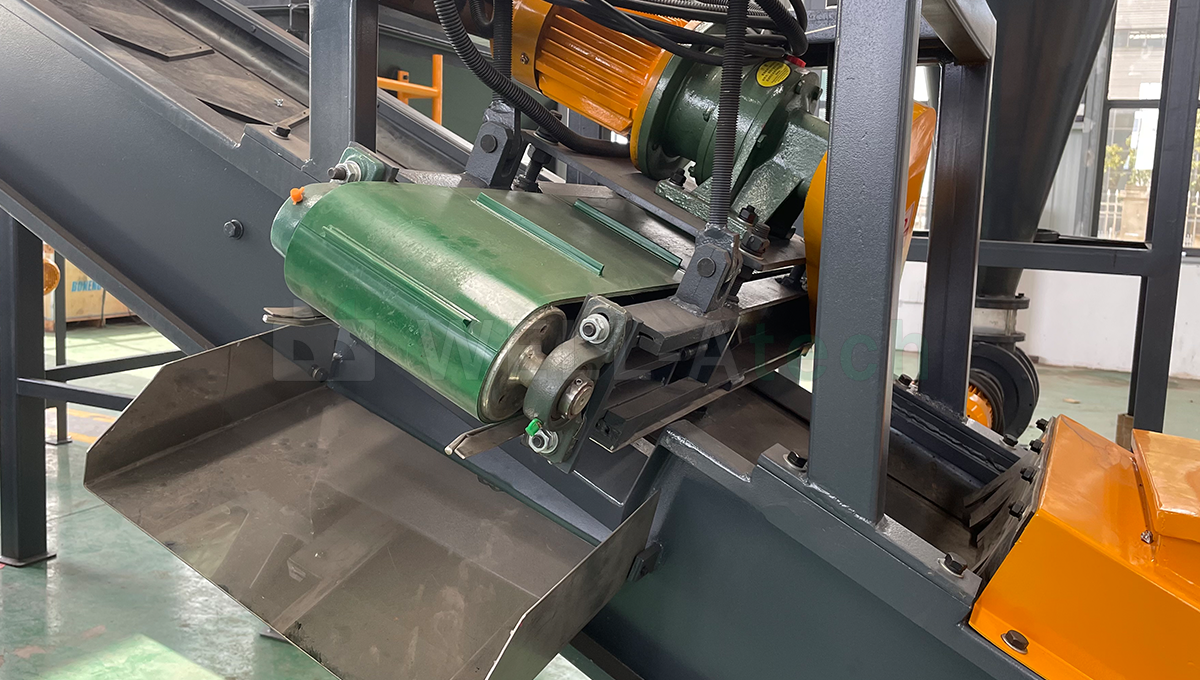

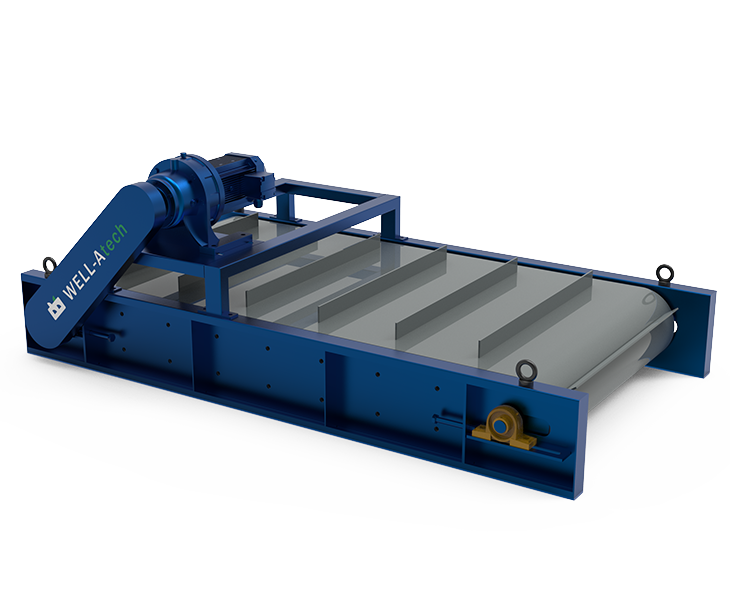

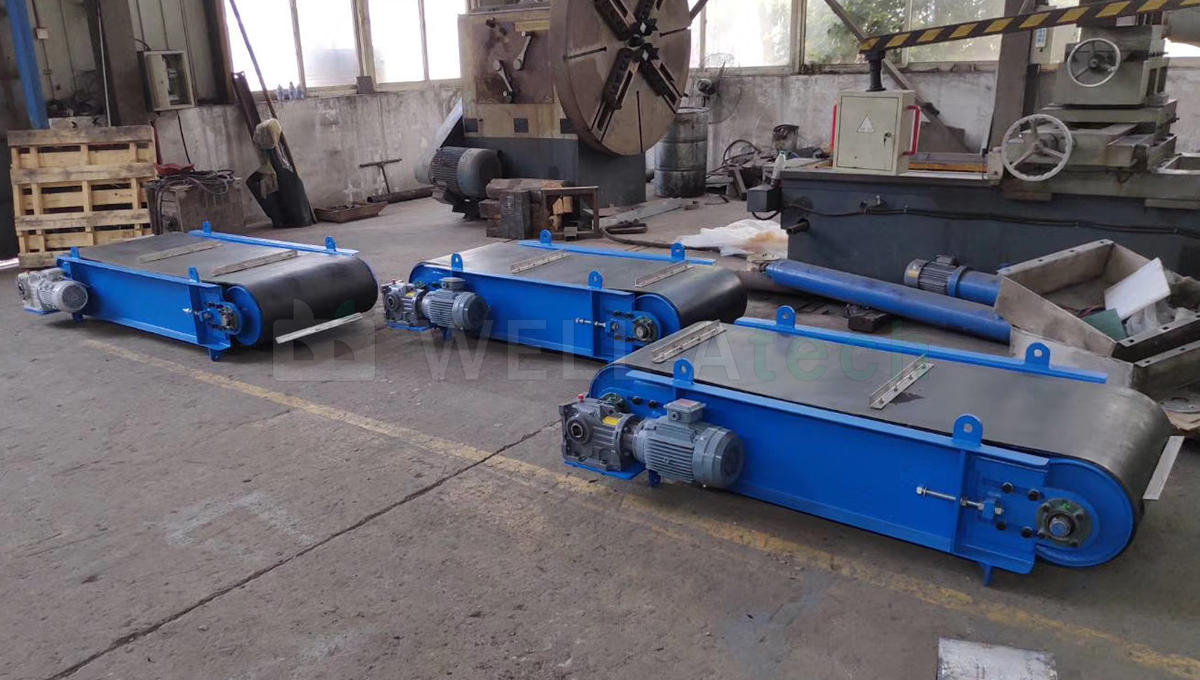

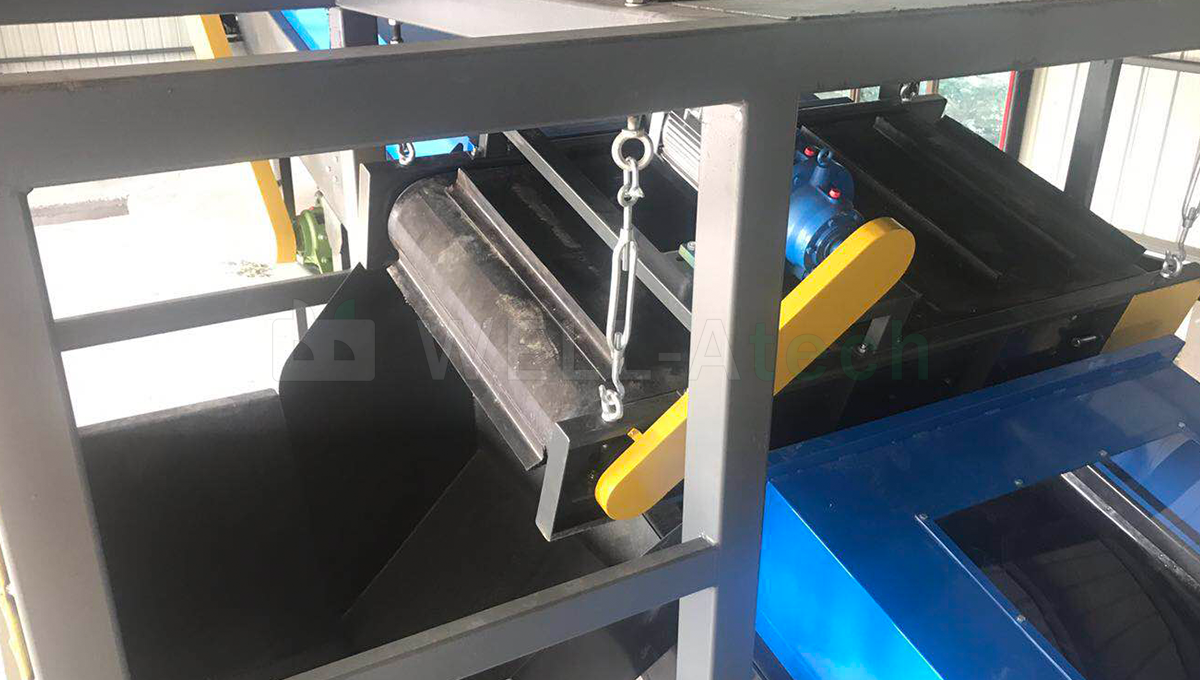

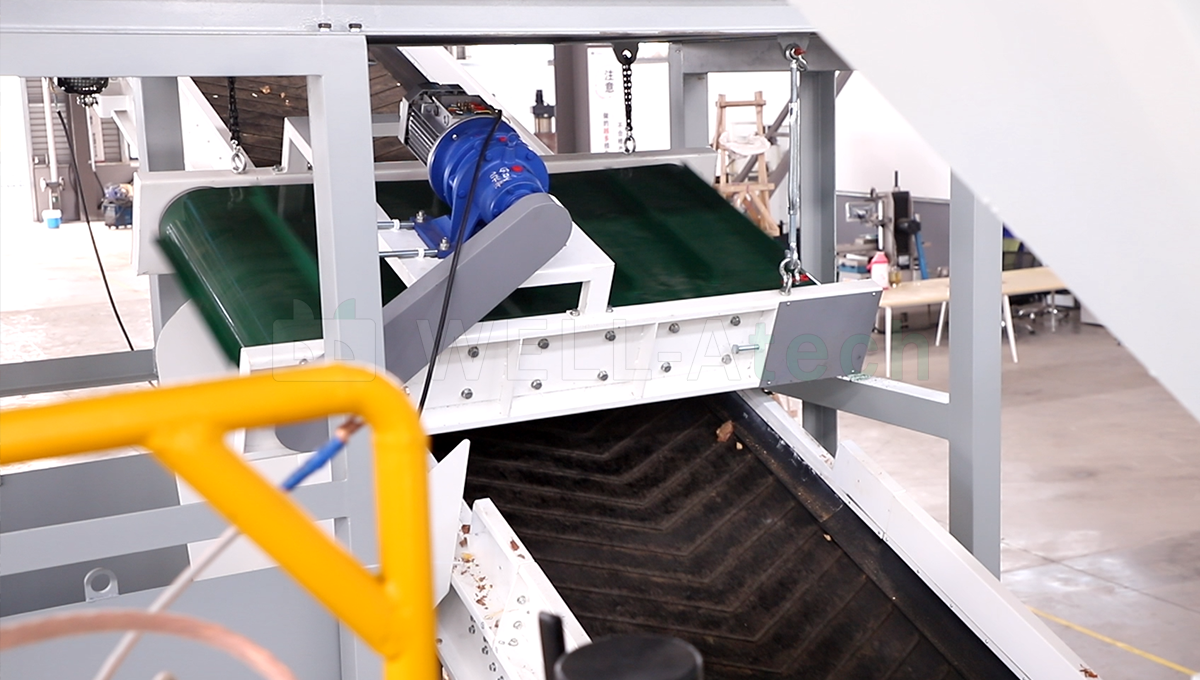

WECX Series Permanent Magnet Suspended Self-Cleaning Magnetic Separator.Featuring strong and stable magnetic force, it is equipped with a continuous self-cleaning belt to remove iron impurities from material flows on conveyor belts. The enclosed structure effectively prevents dust and harmful gases from corroding the magnetic system.


    Video

    Sorted Materials:

    Widely used in solid waste recycling,
    crushing, wood chipping, construction,
    and other industries.

    Feature

    Wide Applicability

    Suitable for conveyor systems with belt widths ranging from 50 to 200 cm.

    Deep Magnetic Field

    Advanced magnetic circuit design for deeper magnetic penetration into
    materials.

    Stable Performance

    High-quality bearings ensure long-term, reliable operation even in harsh
    environments.

    Easy Operation

    Simple and user-friendly belt adjustment mechanism.

    Long-Lasting Magnetism

    Magnetic strength declines no more than 5% over 8 years.

    Specification

    Specification
    		WECX500
    		WECX600
    		WECX800
    		WECX1000
    		WECX1200
    		WEKQ1400
    		WECX1600
    Motor power (kW)
    		1.51.52.2
    		3.0
    		3.0
    		4.05.5
    Adaptable belt width (mm)
    		500
    		600800
    		1000
    		1200
    		1400
    		1600
    Weight(kg)
    		450
    		600
    		720
    		8501200
    		1530
    		1850
    Rated suspension height (mm)
    		150
    		200
    		250
    		300
    		350
    		400
    		450
    L*W*H Dimension（mm）
    		1800*950*430
    		1900*1050*430
    		2100*1250*430
    		2300*1250*440
    		2500*1250*440
    		2700*1450*4402900*1500*440
    Voltage and color customization available






    Full machine warranty for one year (excluding wear parts), with lifetime after-sales support!
