The WESH series single-shaft shredder is designed for volume reduction of various large-scale waste and industrial refuse, supporting resource recovery with a processing capacity of approximately 5-15 tons/hour. Featuring an elongated crushing chamber, it enables direct processing of entire bundled materials. Equipped with an arc-shaped swing arm compression device, it significantly enhances crushing efficiency.
Capacity ：5000-15000kg/h
Output Size ：30-50mm
Customizable
Single Shaft Shredder - H Series
WhatsApp2
WhatsApp1

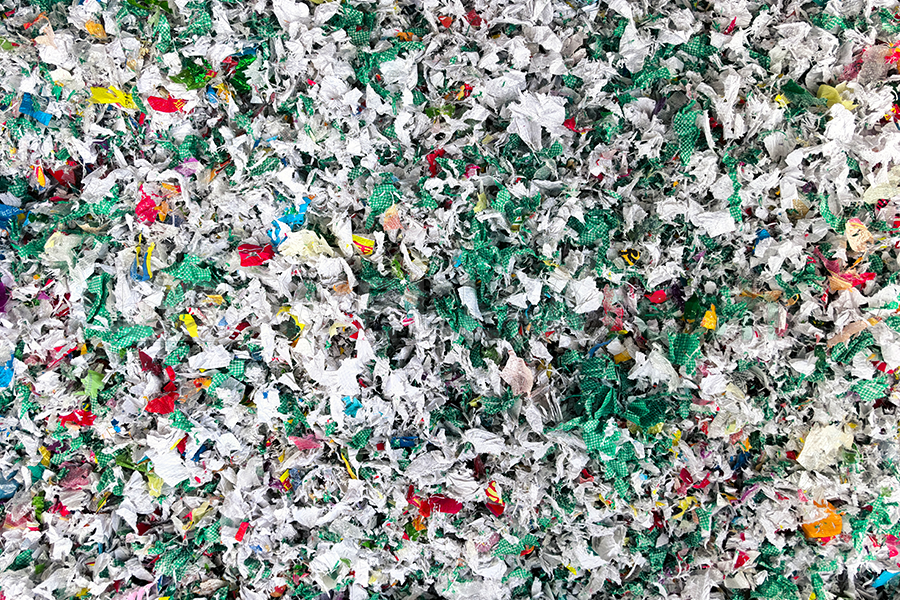

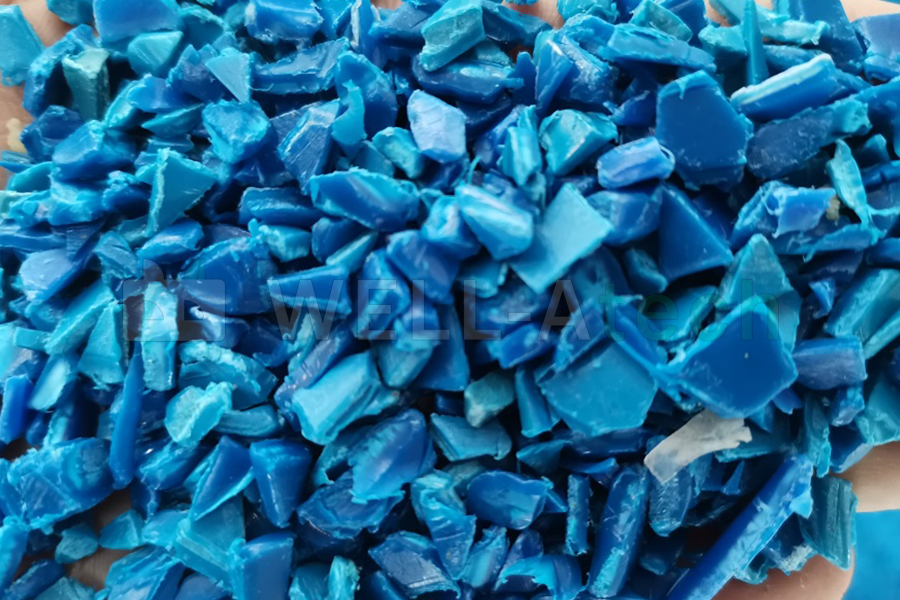

Output Display

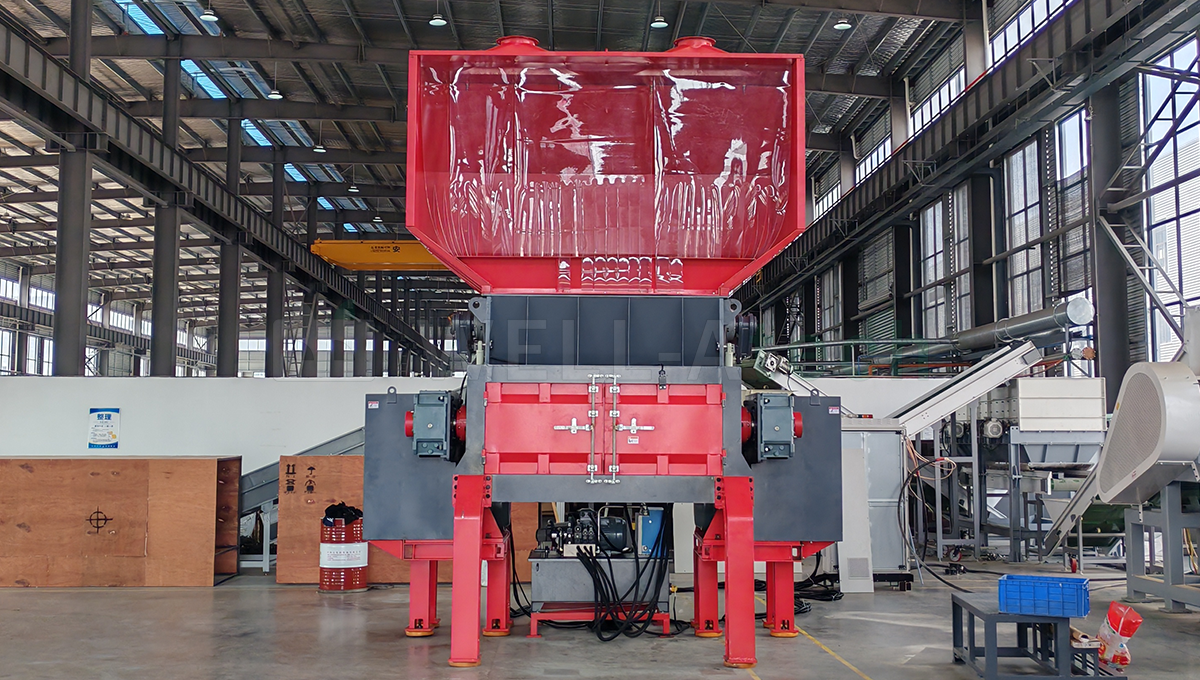

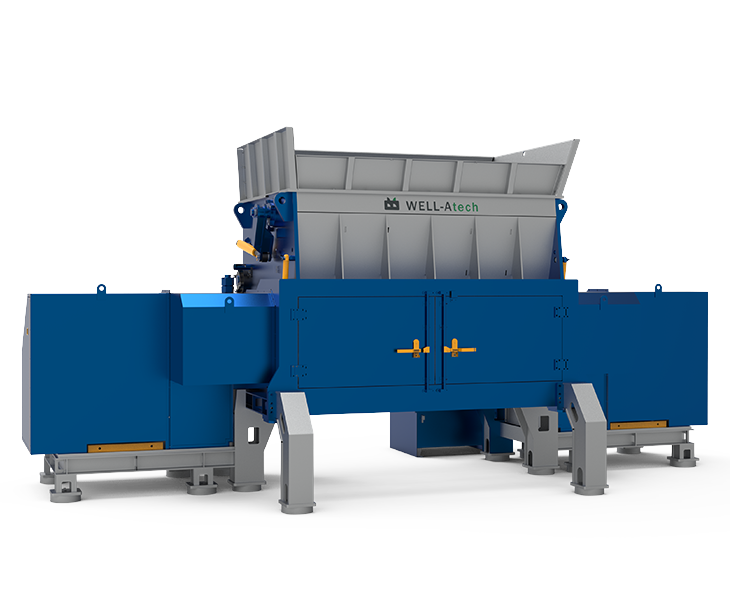

WESH series-Overview
Materials：
Industrial Scrap: Loose or baled materials such as sponge, textiles, leatherIndustrial Residues: Pre-processing for RDF/SDF/SRFPlastics: Loose or baled general plastics, purgingsStraw Materials: Loose or baled rice straw, bean strawPaper: Loose or baled office paper, cardboardMetals: Loose or baled beverage cans, aluminum turnings
After the material enters the chamber through the feeding system, the hydraulic pushing device forces it towards the cutting zone. There, it is shredded into small pieces through the tearing, compressing, and shearing actions of the rotary and stationary blades. The processed material is finally discharged through the screen. The equipment features low-speed operation with low noise levels, energy efficiency, and high productivity. It supports customization of circular or hexagonal screens.
Working Principle

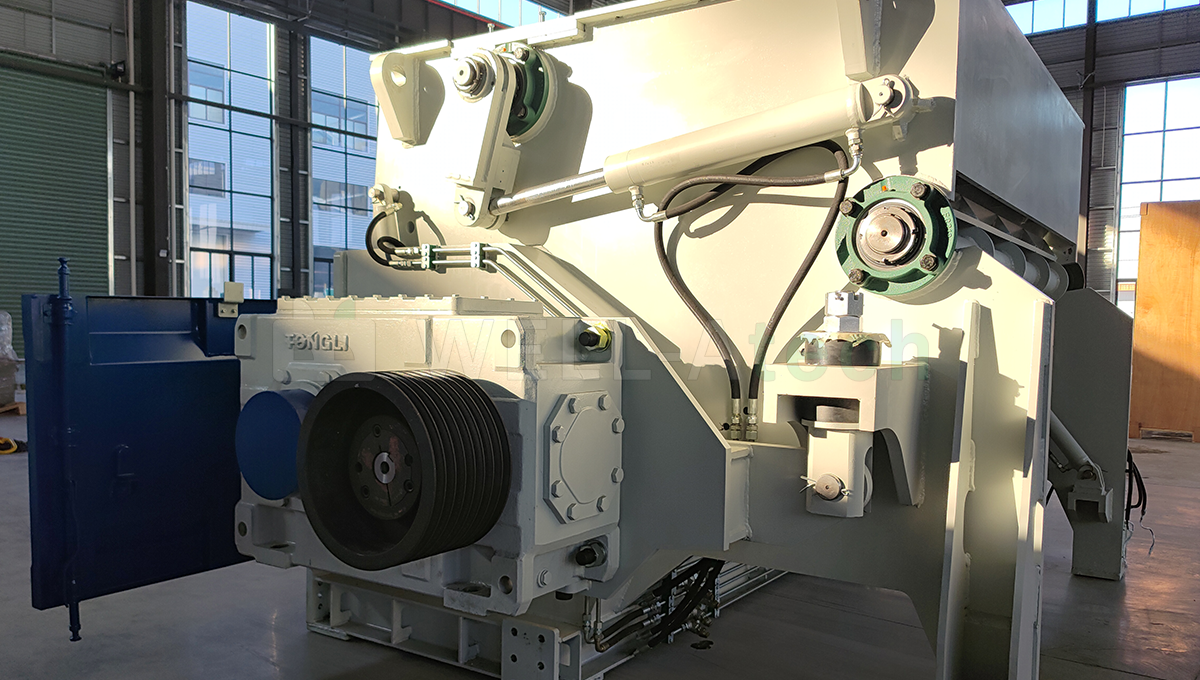

WESH Series-Features
Pusher
Pushing evenly to improve the crushing efficiency.
Slanted pusher eliminates residue.
Slanted pusher eliminates residue.

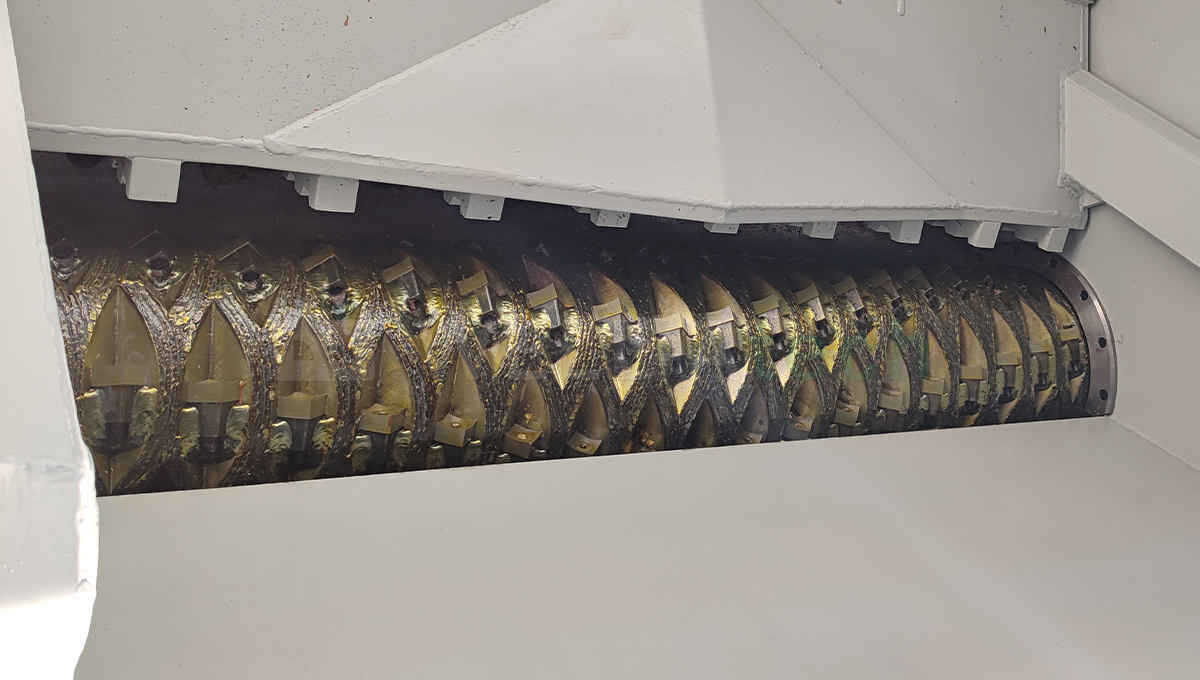

Rotor Blade
High-strength alloy rotor blade has long service life, can be
used twice.
used twice.

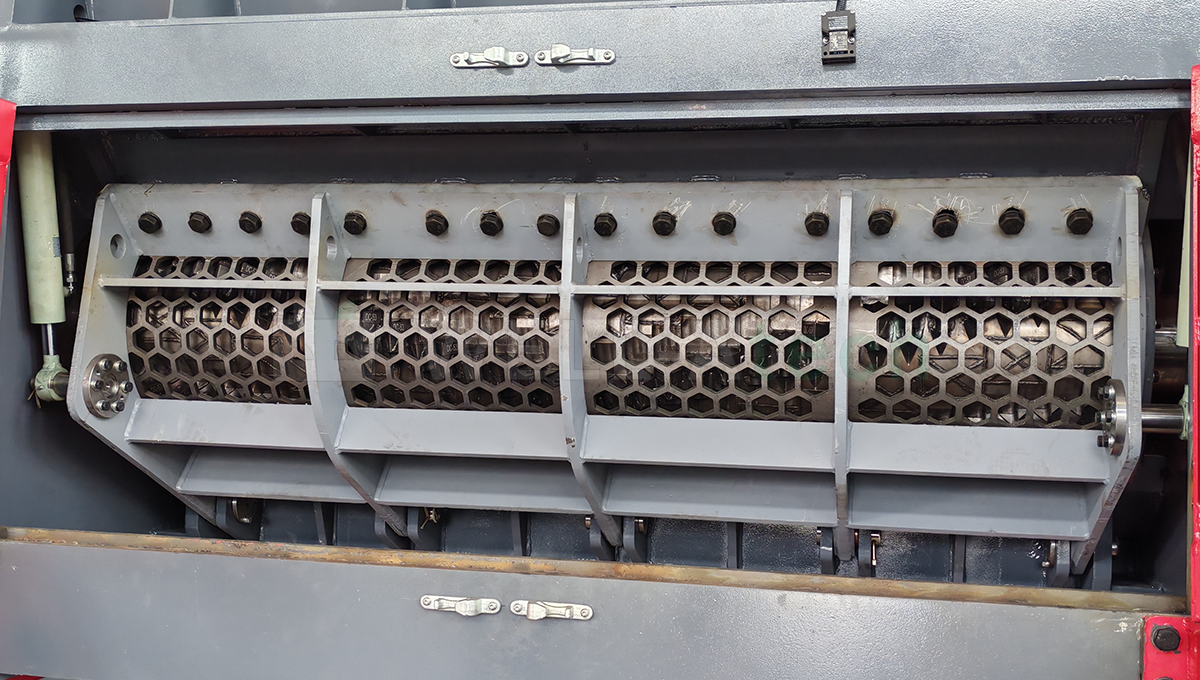

Screen
- Circular/Hex screen mesh is available for better end product size control.
- It is easy to complete the replacement.
Circular/Hex screen mesh is available for better end product size control.
It is easy to complete the replacement.
Electric System
Main electrical control components adopt Siemens, Schneider and other reliable international brands.

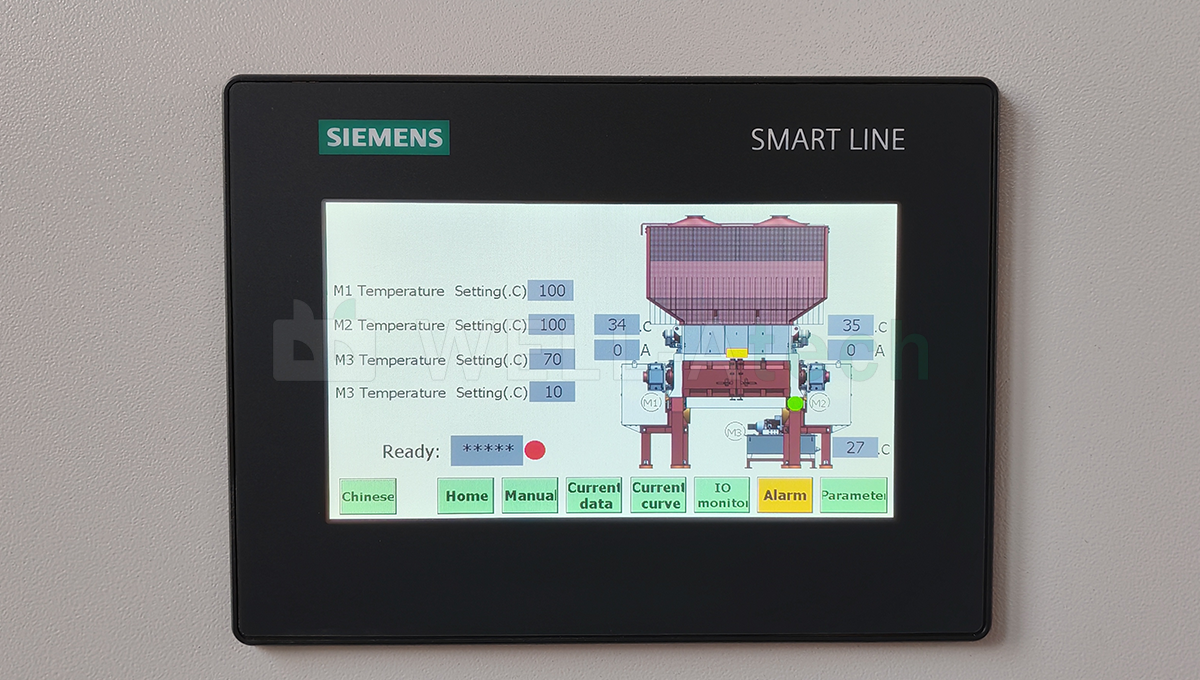

Electrical Control
Equipped with PLC system to achieve automatic control.
Monitor key parameters to ensure the safety.
Monitor key parameters to ensure the safety.
WESH Series-Parameters
Full machine warranty for one year (excluding wear parts), with lifetime after-sales support!
| Specification /Model | WESH1500 | WESH2000 | WESH2200 | WESH3000 |
| Crushing chamber（mm） | 1700* 1500 | 1700* 2000 | 1700*2200 | 1970*3000 |
| Motor power (kW) | 90 | 75+75 | 132+132 | 220+220 |
| Hydraulic Power (kW) | 5.5 | 7.5 | 11 | 11 |
| Rotor diameter (mm) | 460 | 460 | 600 | 800 |
| L*W*H Dimension（mm） | 2550*3750*2750 | 2550*4350*2750 | 2750*5640*2900 | 2850*6950*3700 |
| Voltage and color customization available | ||||
